CBR 60

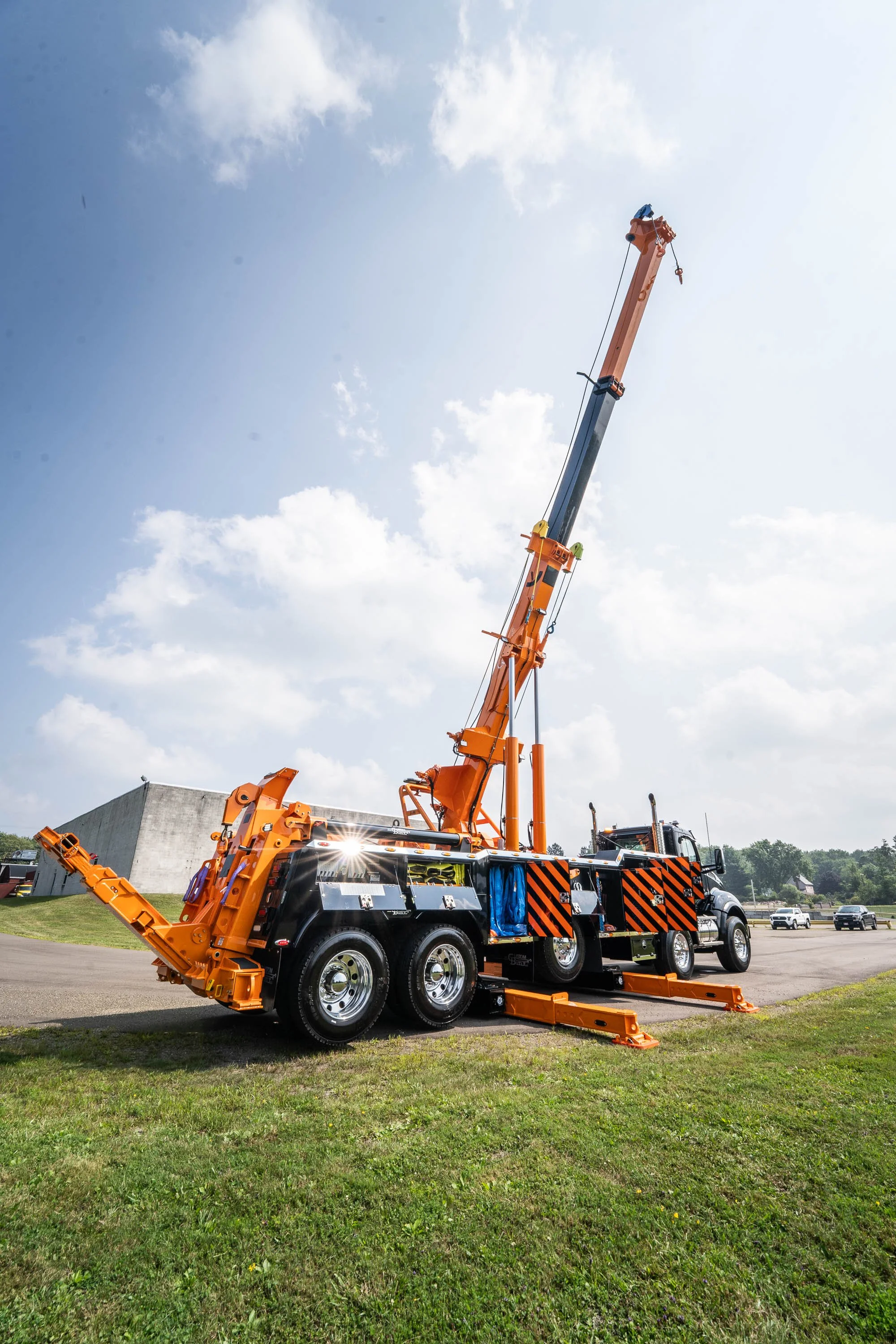

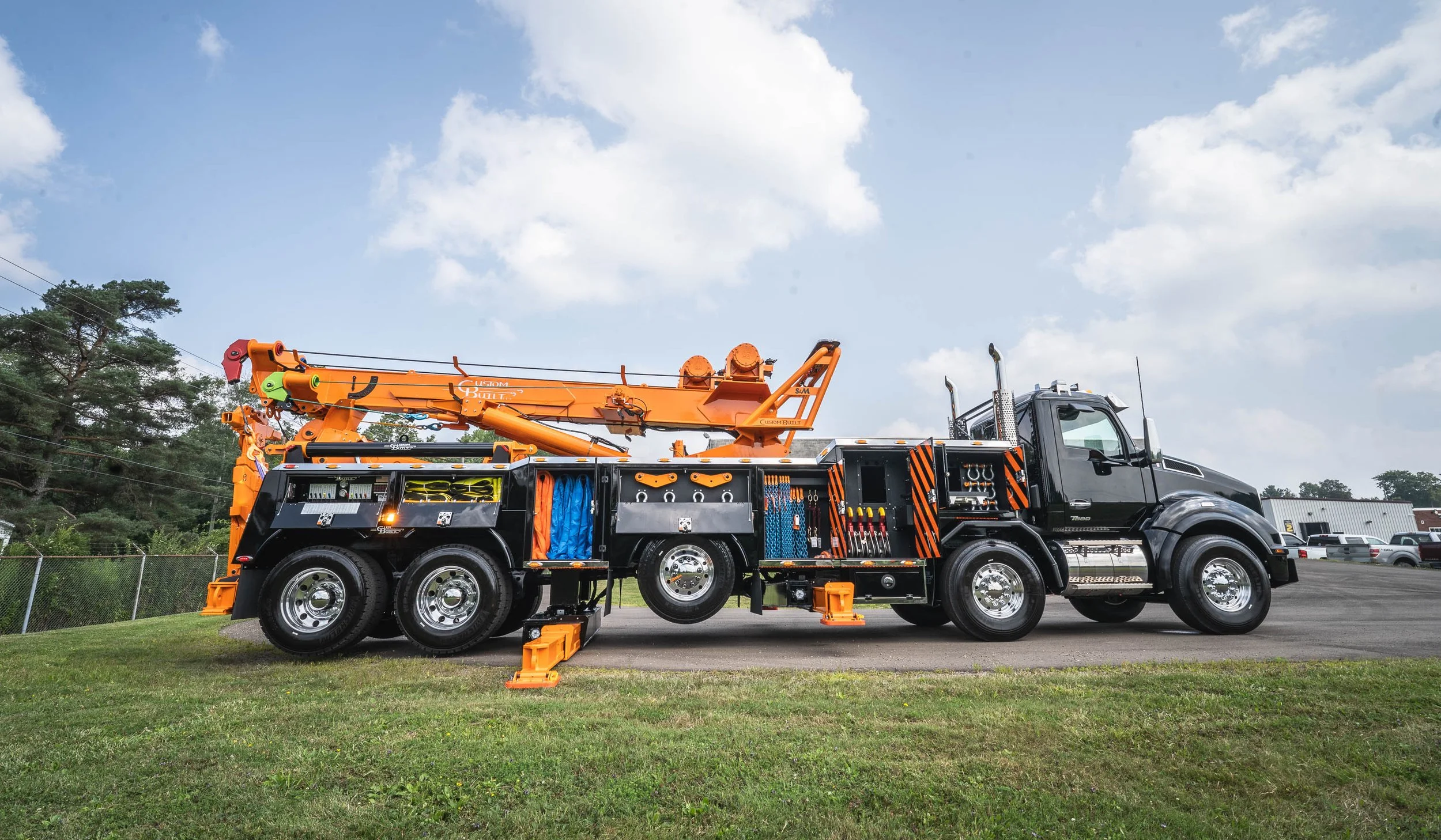

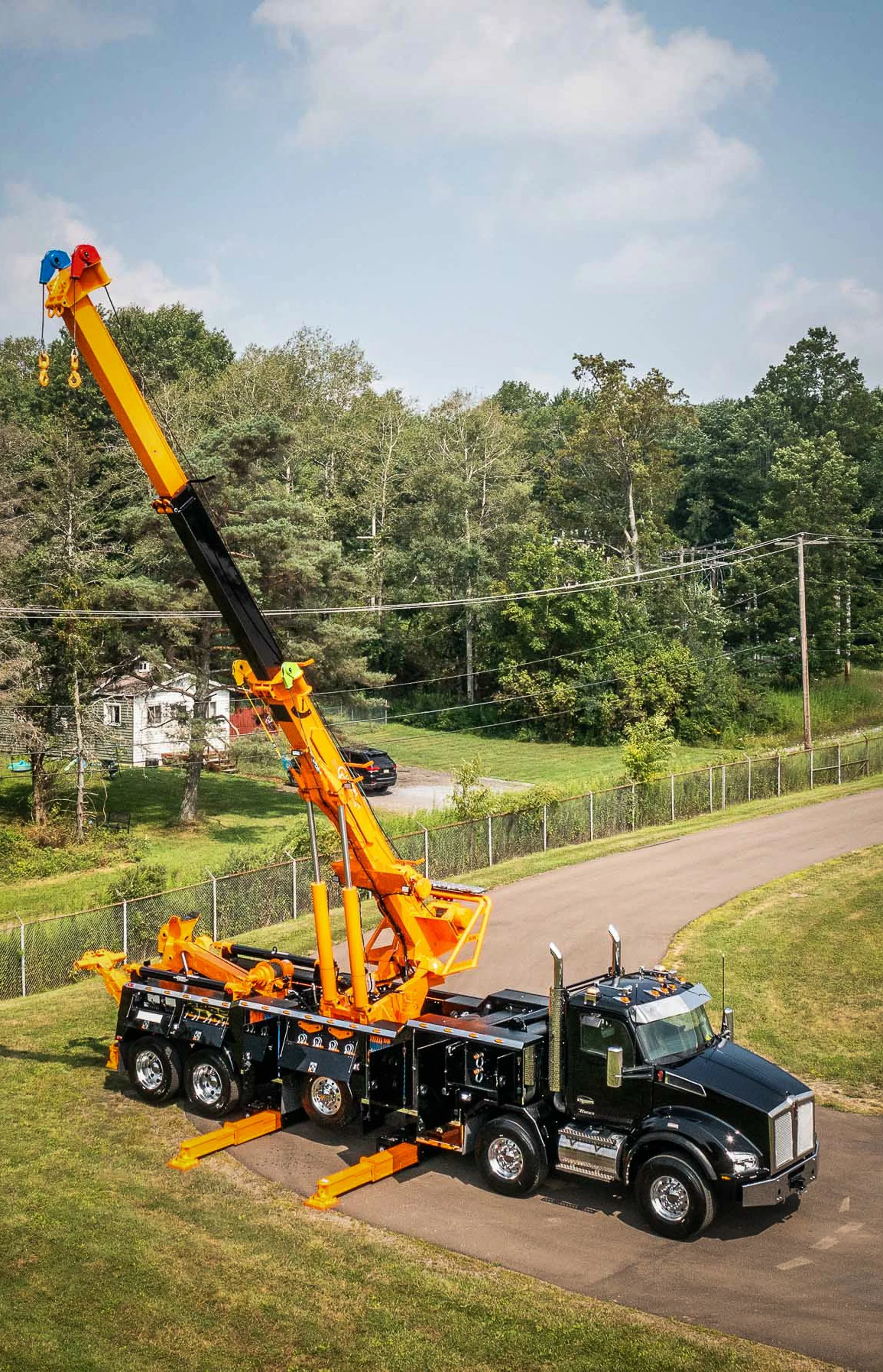

The CBR 60 is designed for your more difficult recoveries. The CBR 60 features dual planetary drive motors, dual 50,000lb planetary two-speed winches and a three-stage fabricated recovery boom standard. It is also available with an optional 50,000lb drag winch and/or optional 20,000lb auxiliary boom winches. The CBR 60 recovery boom has a maximum length of 264” and an impressive 523” hook height. While maintaining an impressive 20,000lb boom rating, fully extended off the side at a 60-degree boom angle. The CBR 60 unit enables the operator to utilize a 360-degree boom rotation. It comes standard with the 130” 50,000lb underlift, but can be upgraded to the 146” xl 50,000lb underlift for additional reach.
SPECIFICATIONS CBR 60

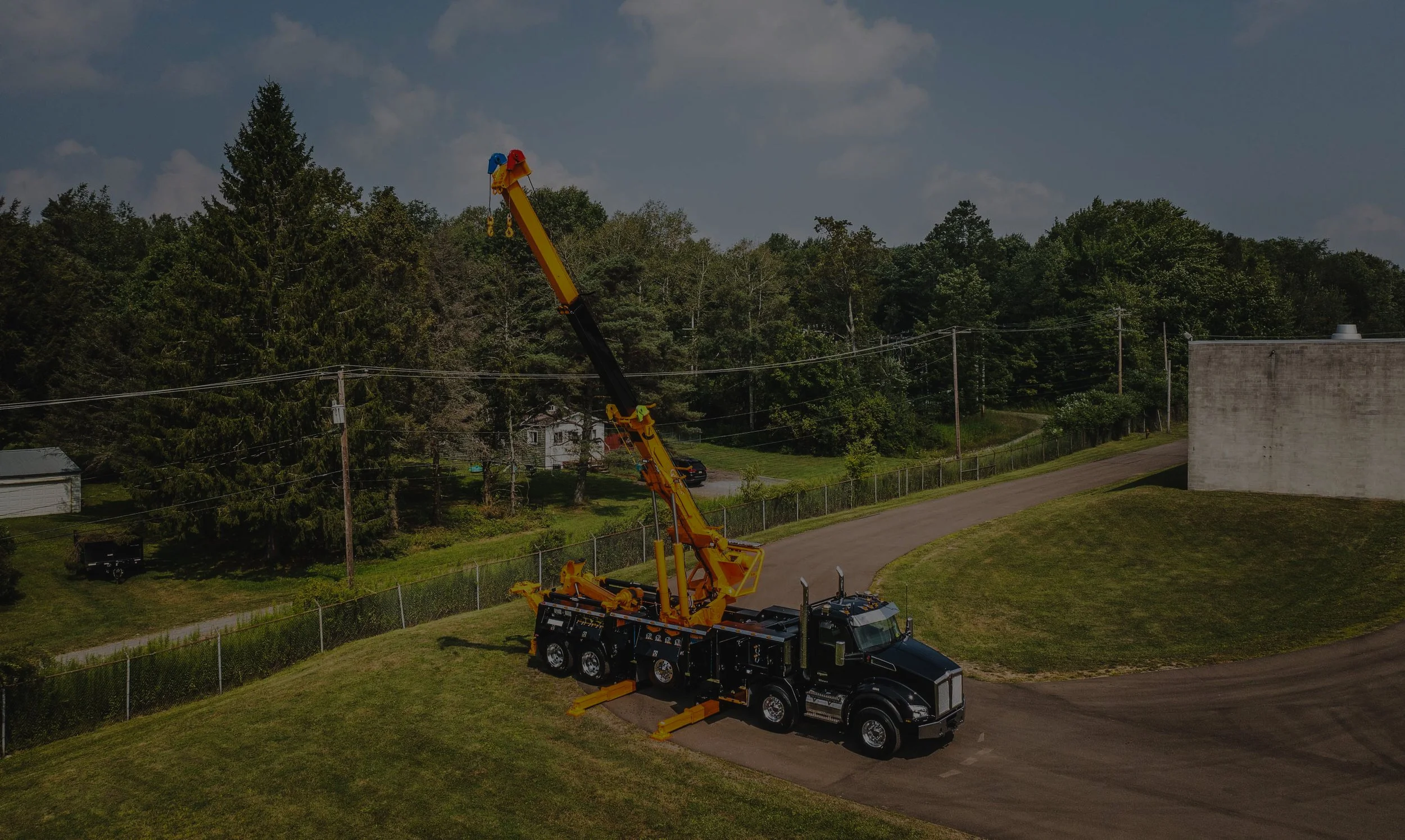

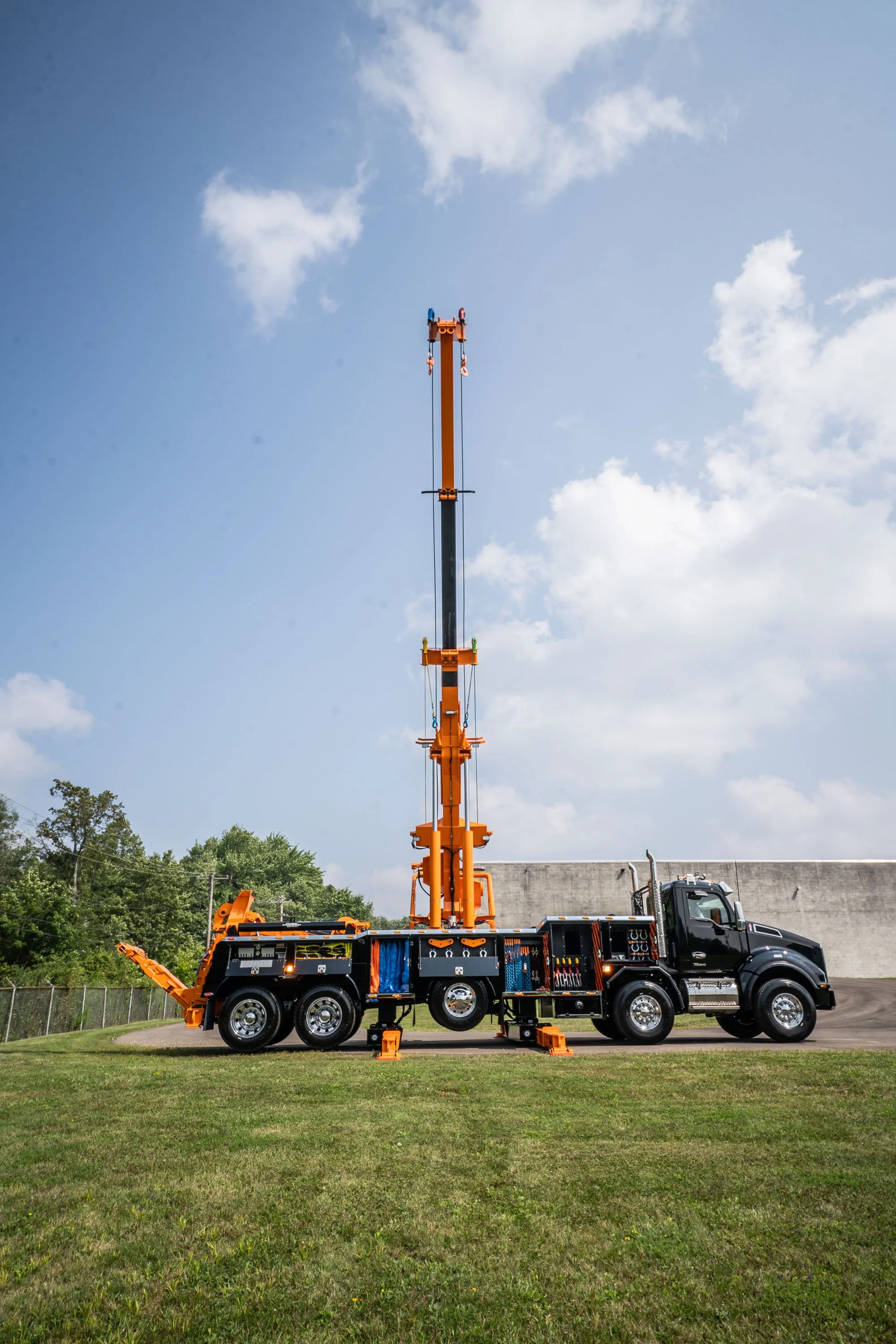

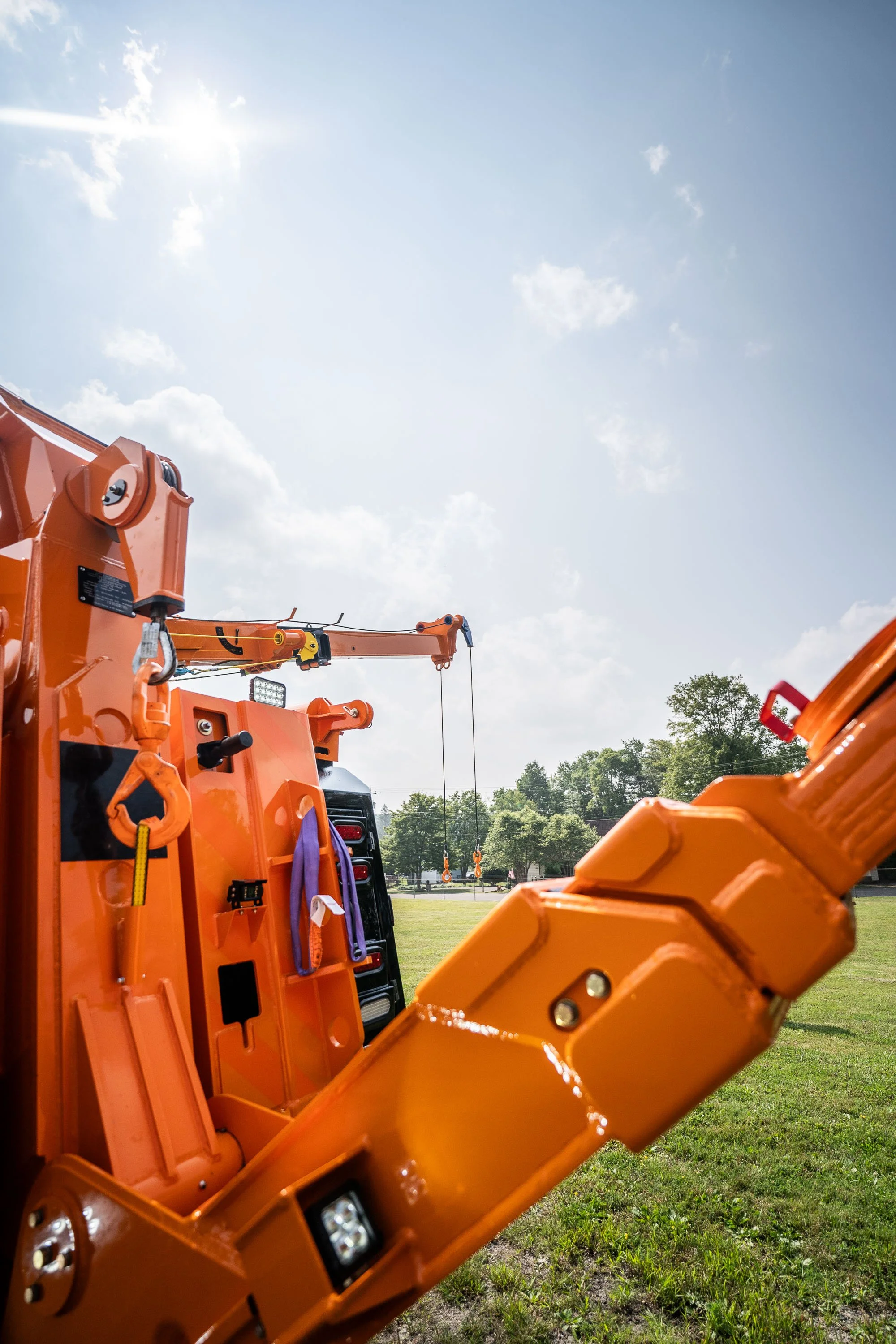

ROTATOR RECOVERY BOOM
RETRACTABLE BOOM LIFT CYLINDERS 8” BORE BOOM
RETRACTED 120,000 LB @ MINIMUM 60 DEGREES OFF REAR
BOOM EXTENDED 20,000 LB @ MINIMUM 60 DEGREES OFF REAR
BOOM EXTENSION 240”
REACH PAST TAIL BOARD 270”

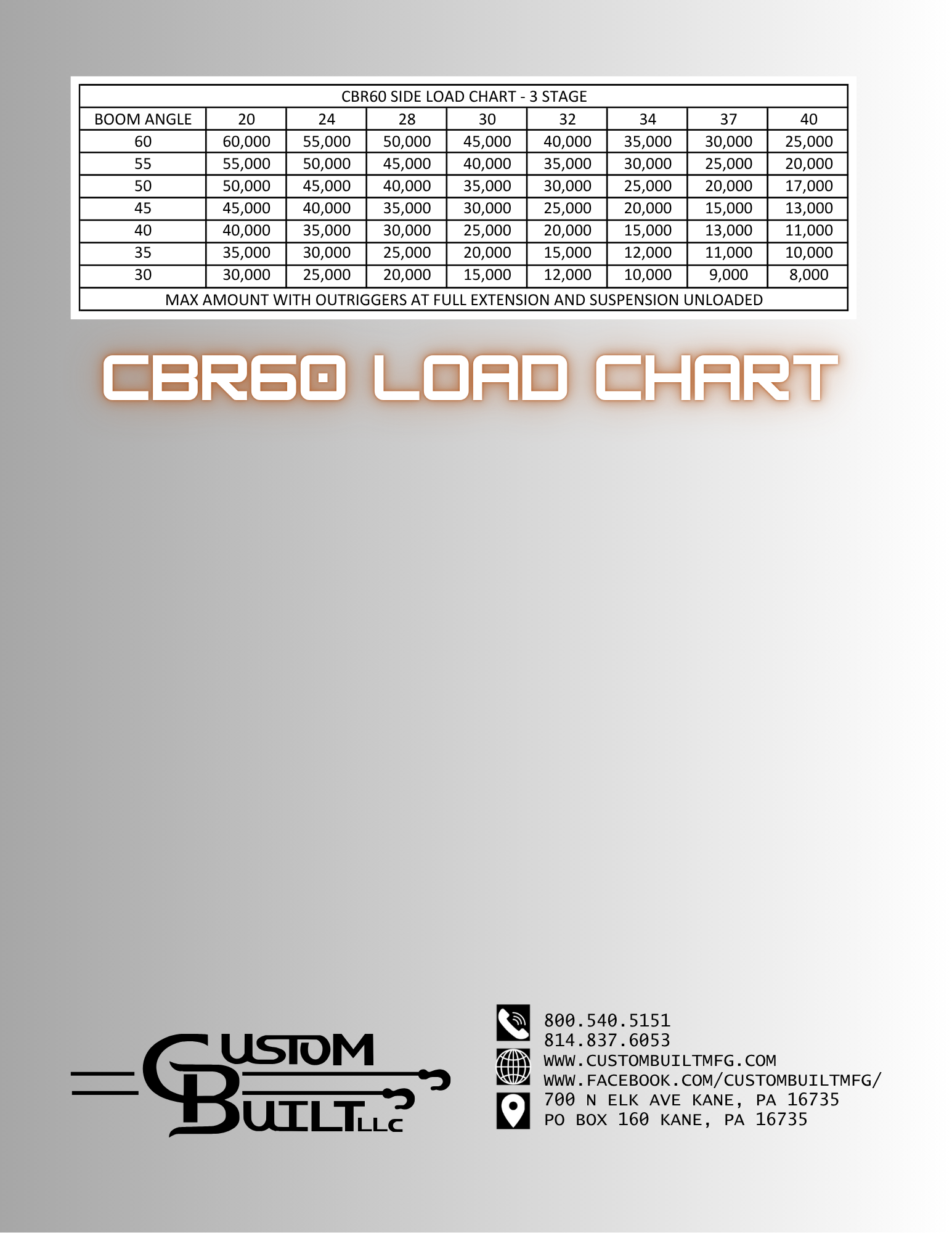

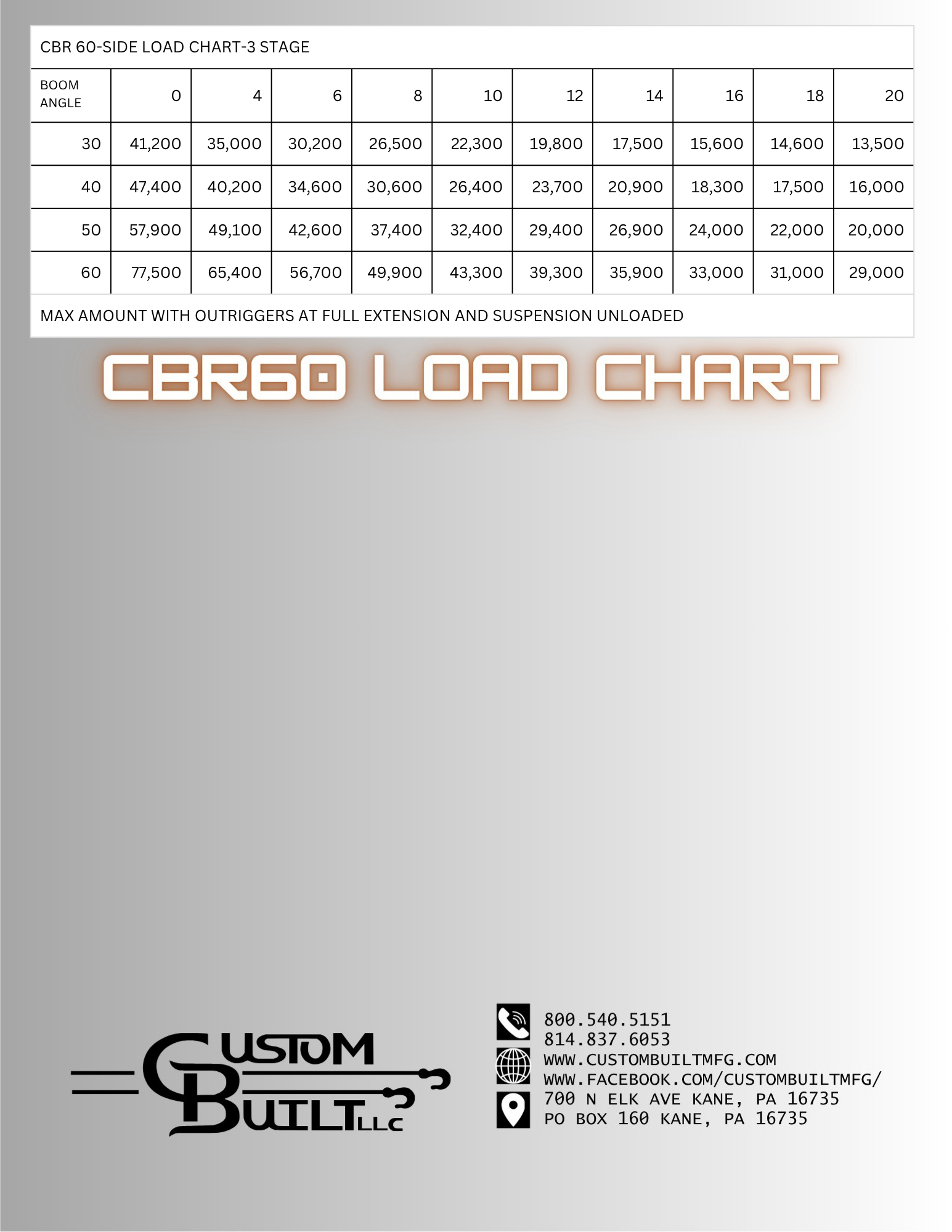

SEE LIFT CHART FOR SIDE RECOVERY RATING
WINCH SPECIFICATIONS
2 WINCH 50,000 LB TWO SPEED
AIR CABLE TENSIONER AND AIR FREE SPOOL
2 SIDE WINCHES 20,000 LB
1 DRAG WINCH 50,000 LB

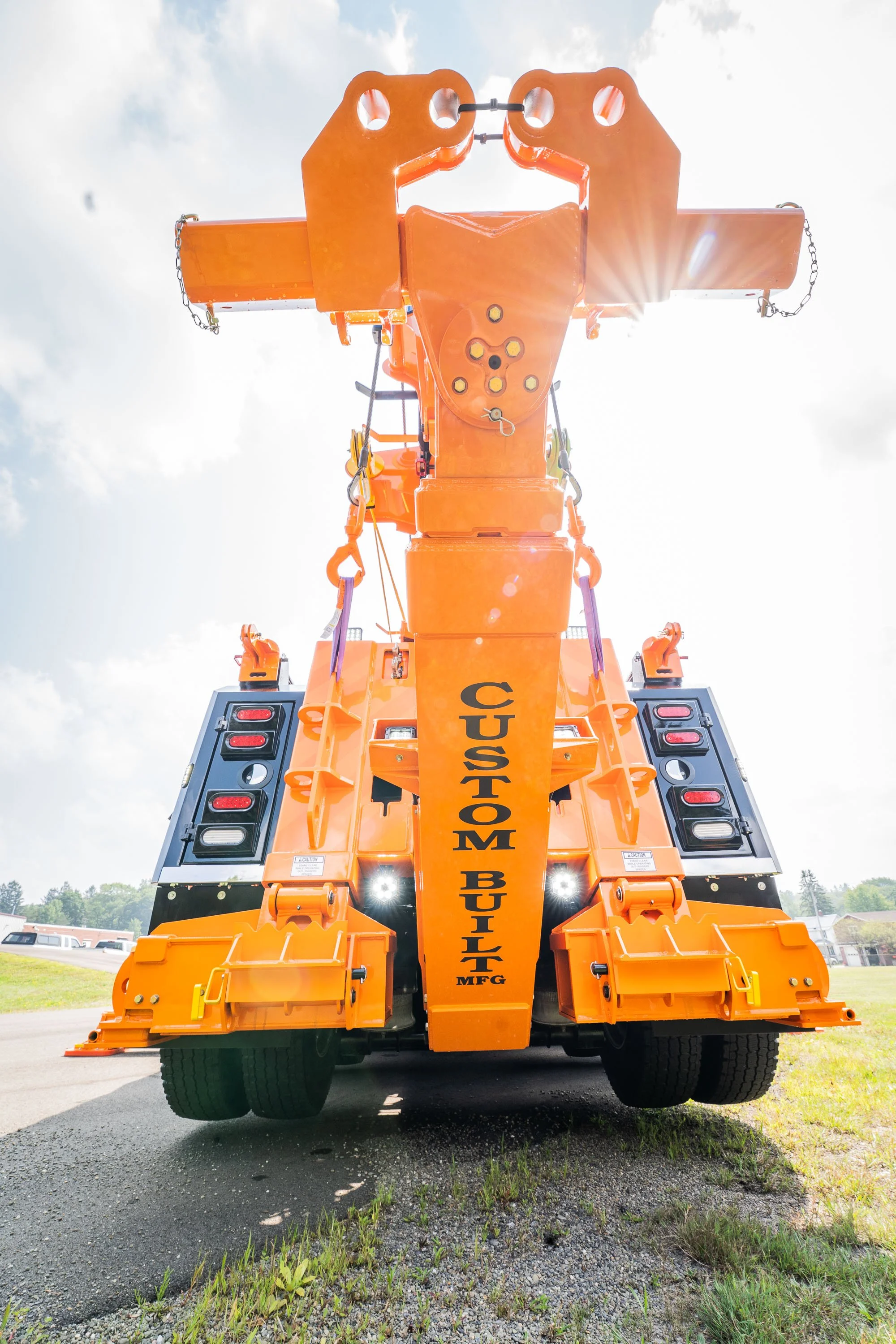

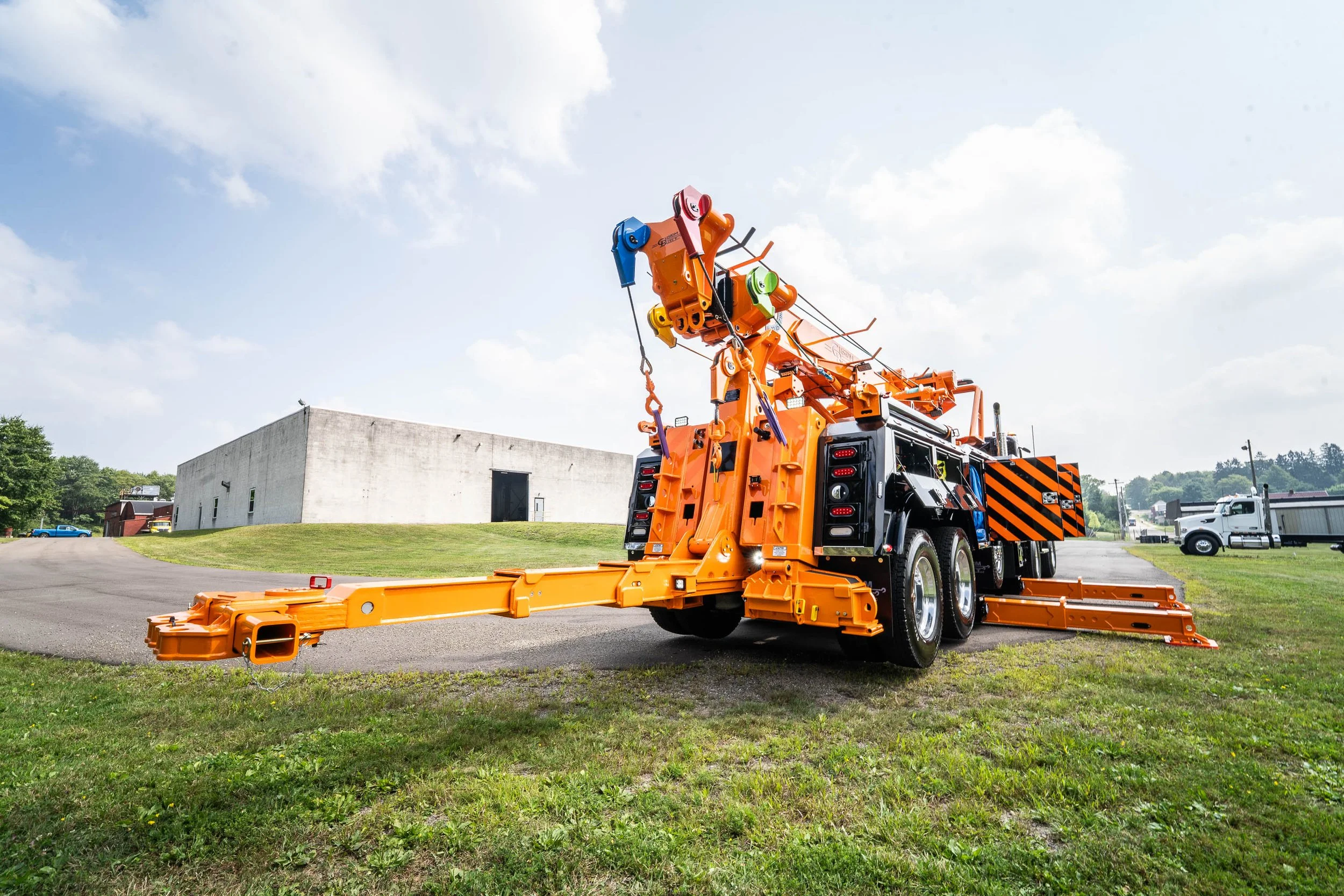

underlift
UNDERLIFT FULLY RETRACTED 70” 50,000 LB RATING
UNDERLIFT FULLY EXTENDED 135” 14,000 LB RATING
TOW CAPACITY 80,000 LBS
CENTER OF REAR AXLE TO TAIL OF FRAME 30”
CHASIS RECOMMENDATIONS
MINIMUM FRONT AXLE GAWR 20,000 LB
MINIMUM REAR AXLE GAWR 46,000 LB
MINIMUM RBM EACH FRAME RAIL 3,000,000
-
![]()
