CB QT

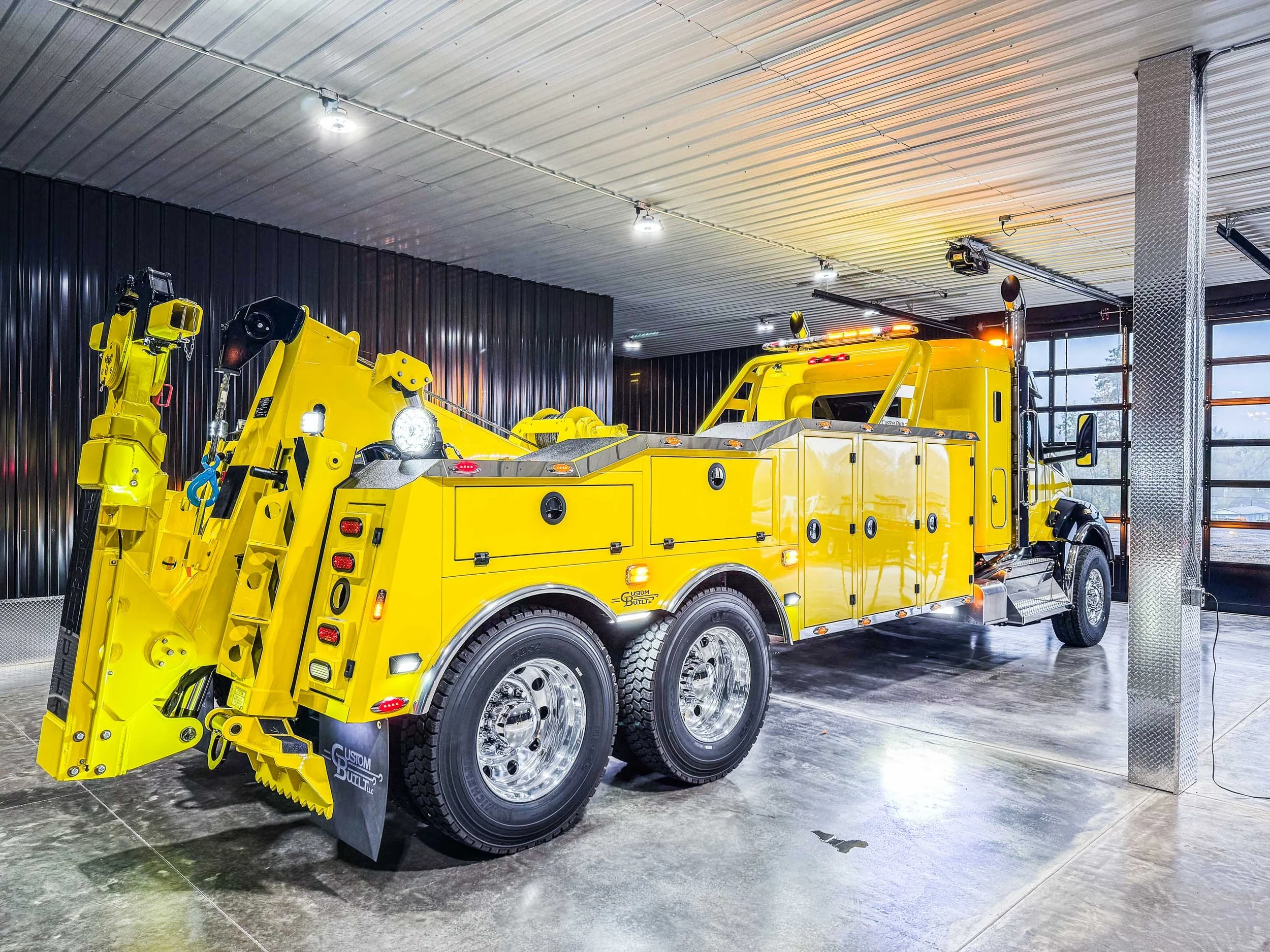

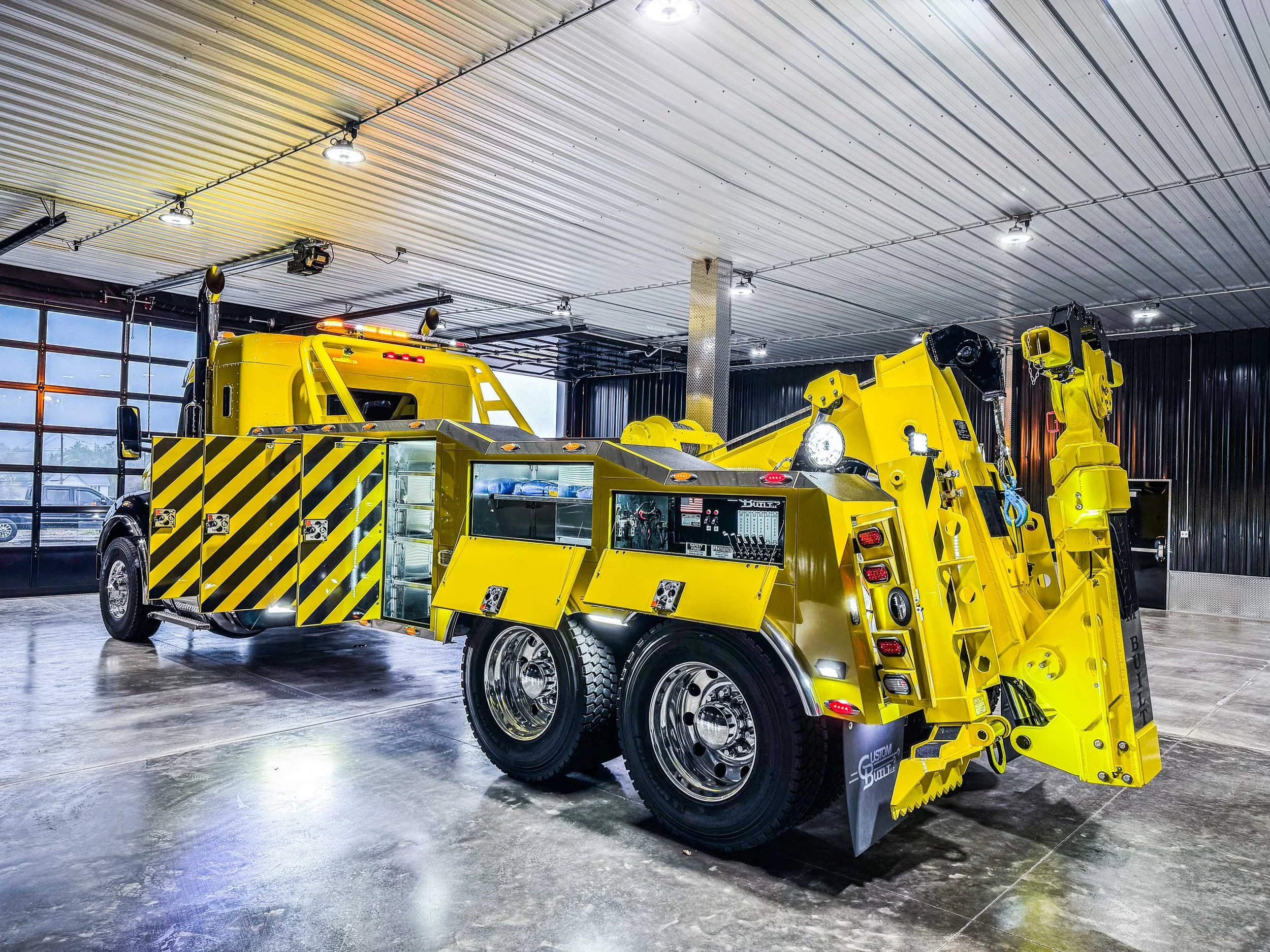

The CB QT is designed for your everyday tractor swaps, box trucks, and motor homes. This can be a single or tandem axle unit with a 35,000lb underlift utilizing an option for rear hydraulic spades and a 20,000lb winch.
specifications cb qt
WINCH SPECIFICATIONS
1 WINCH 20,000LB SINGLE SPEED
AIR FREE SPOOL
UNDERLIFT
UNDERLIFT FULLY RETRACTED 58” 28,000LB RATING
UNDERLIFT FULLY EXTENDED 120” 12,000LB RATING
TOW CAPACITY 80,000LBS
CANETER OF REAR AXLE TO TAIL OF FRAME 30”
CHASSIS RECOMMENDATIONS
MINIMUM FRONT AXLE GAWR 12,000LB
MINIMUM REAR AXLE GAWR 40,000LB
MINIMUM RBM EACH FRAME RAIL 2,250,000 IN-LBS
-
![]()
