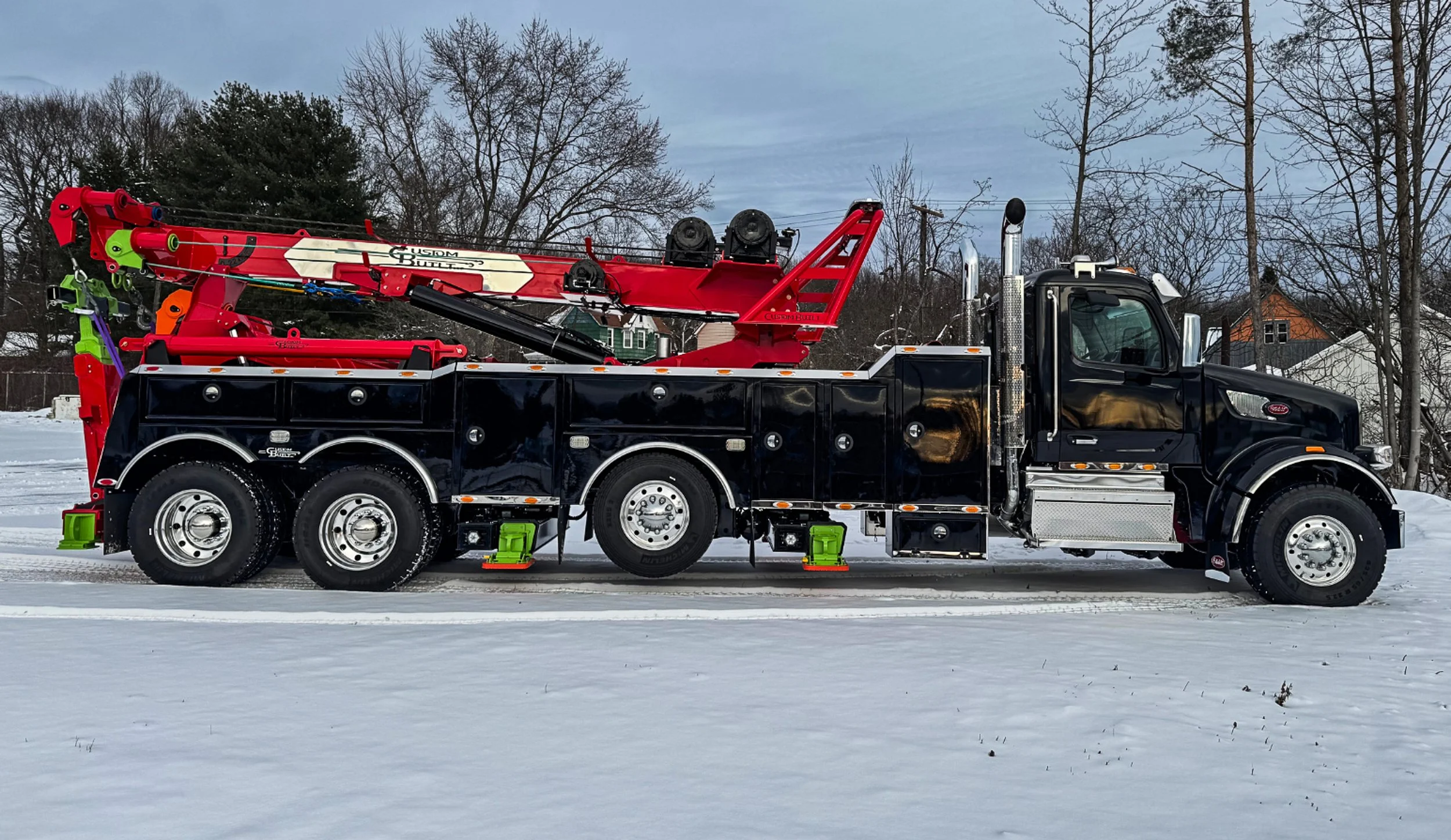

CBR 50

HEAVY-DUTY WRECKER CONSULTATION

The CBR 50 is designed to be a versatile unit for towing and recovery. The CBR 50 features dual 50,000lb planetary two-speed winches and a three-stage fabricated recovery boom standard. It is also available with an optional 50,000lb drag winch and/or optional 20,000lb auxiliary boom winches. The CBR 50 recovery boom has a maximum length of 240” and an impressive 514” hook height. While maintaining an impressive 20,000lb boom rating, fully extended off the side at a 60-degree boom angle. The CBR 50 unit enables the operator to utilize a 360-degree boom rotation. It comes standard with the 130” 50,000lb underlift but can be upgraded to the 146” xl 50,000lb underlift for additional reach.

SPECIFICATIONS CBR 50

ROTATOR RECOVERY BOOM

  • RETRACTABLE BOOM LIFT CYLINDERS 8” BORE BOOM

  • RETRACTED 100,000 LB @ MINIMUM 45 DEGREES OFF REAR

  • BOOM EXTENDED 20,000 LB @ MINIMUM 45 DEGREES OFF REAR

  • BOOM EXTENSION 216”

  • REACH PAST TAIL BOARD 226”

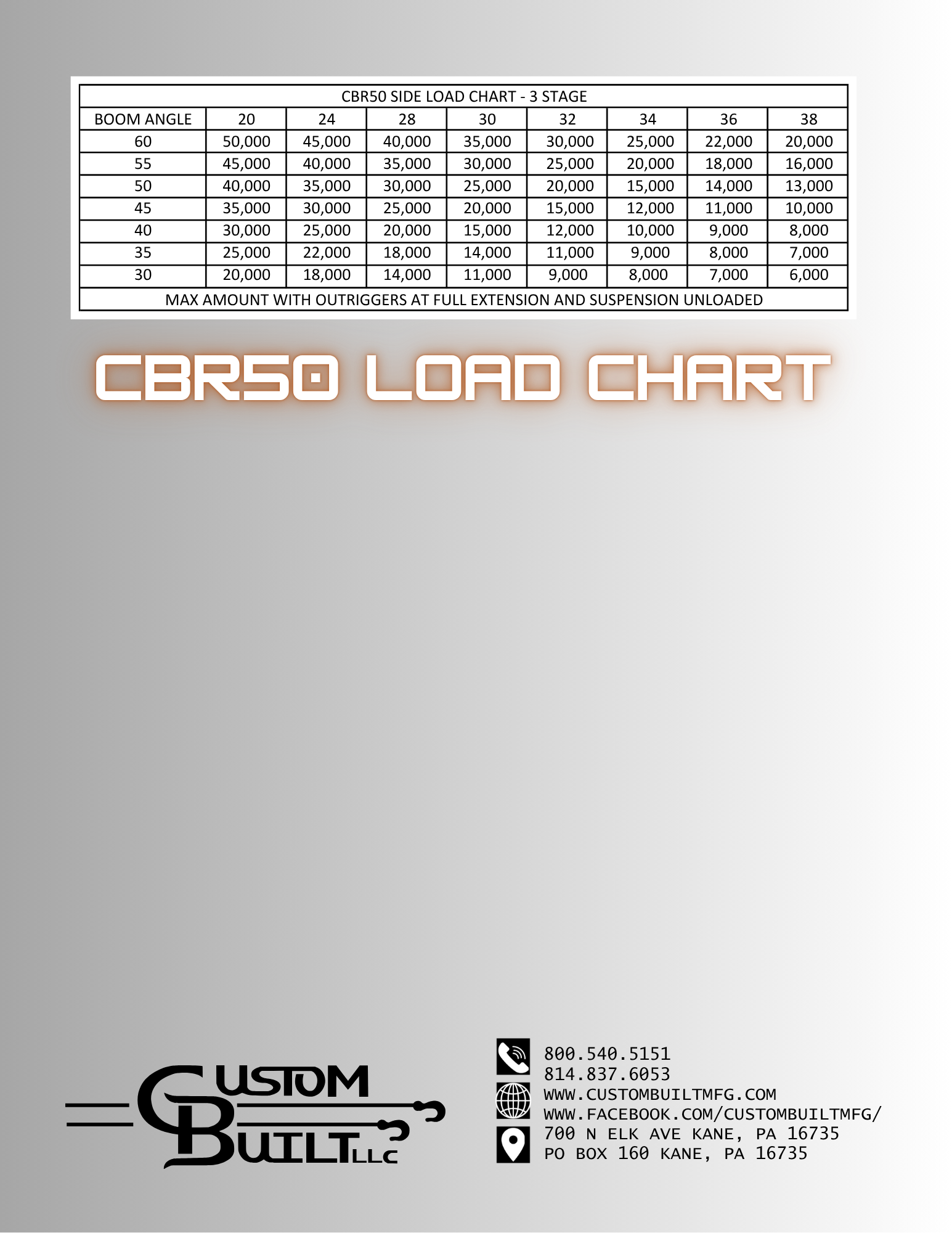

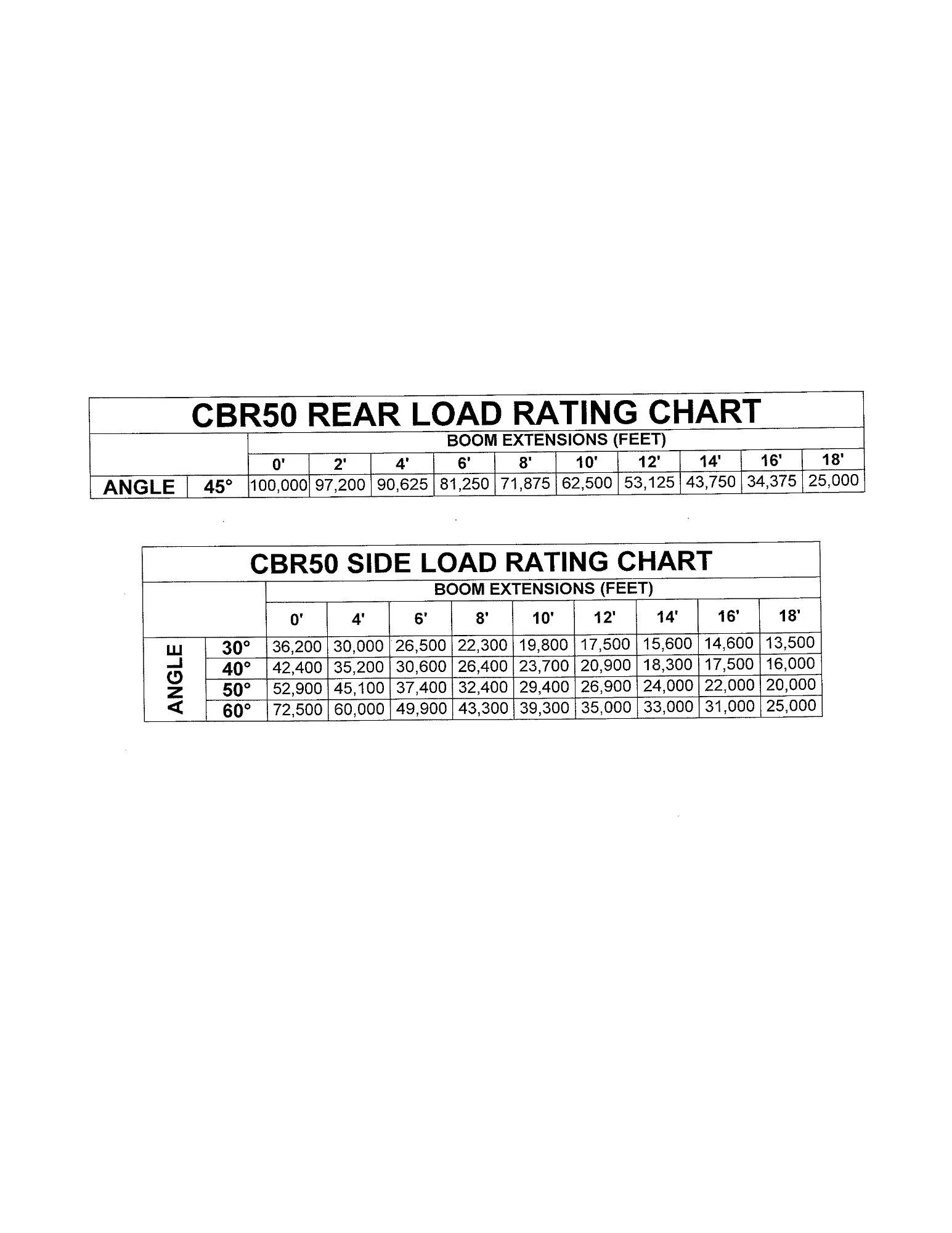

  • SEE LIFT CHART FOR SIDE RECOVERY RATING

    WINCH SPECIFICATIONS

  • 2 WINCH 50,000 LB TWO SPEED

  • AIR CABLE TENSIONER AND AIR FREE SPOOL

  • 2 SIDE WINCHES 20,000 LB SINGLE SPEED

  • 2 DRAG WINCH 50,000 LB

    underlift

  • UNDERLIFT FULLY RETRACTED 70” 50,000 LB RATING

  • UNDERLIFT FULLY EXTENDED 135” 14,000 LB RATING

  • TOW CAPACITY 80,000 LBS

  • CENTER OF REAR AXLE TO TAIL OF FRAME 30”

    CHASIS RECOMMENDATIONS

  • MINIMUM FRONT AXLE GAWR 18,000 LB

  • MINIMUM REAR AXLE GAWR 46,000 LB

  • MINIMUM RBM EACH FRAME RAIL 2,250,000
