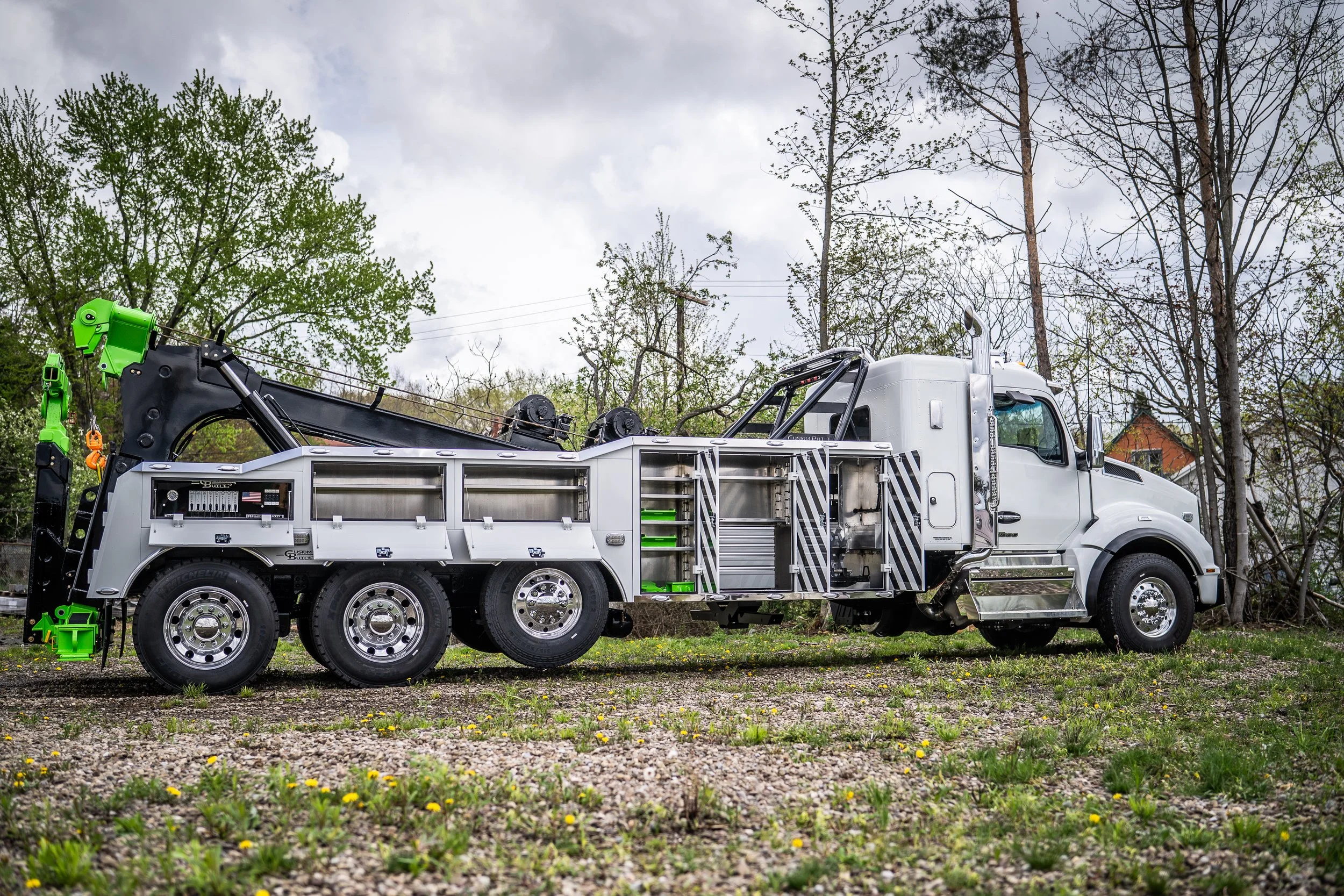

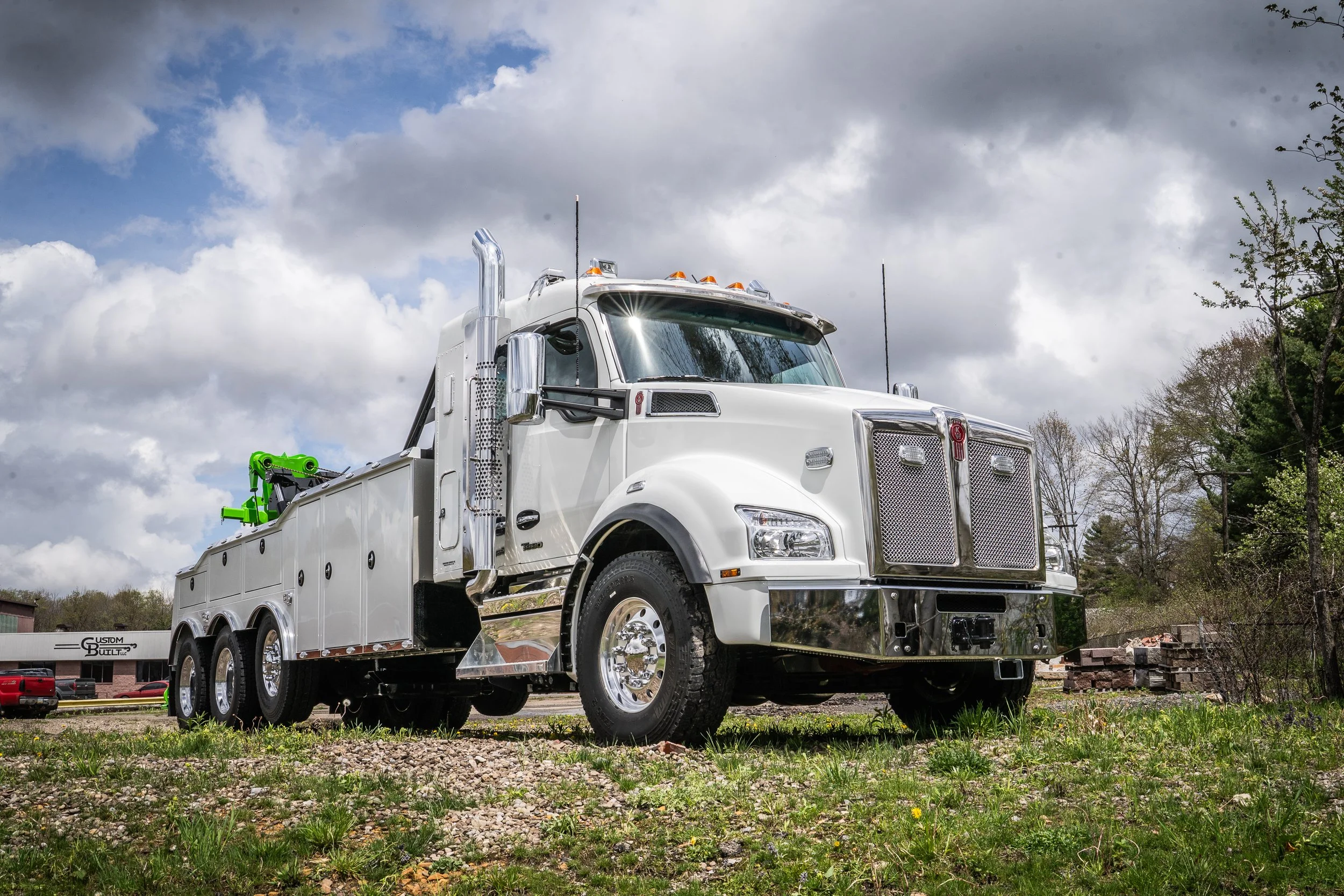

CB 30

HEAVY-DUTY WRECKER CONSULTATION

The CB 30 is one of Custom Built’s most popular heavy-duty units. The underlift provides 130” of reach and incorporates a 30-Ton recovery boom with dual 35,000lb winches that allows the CB 30 to tackle the toughest lifting and recovery jobs. This makes it extremely versatile for everyday heavy-duty towing and recovery.

SPECIFICATIONS CB 30

RECOVERY BOOM

  • RETRACTABLE BOOM LIFT CYLINDERS 6” BORE BOOM

  • BOOM RETRACTED 60,000LB @ MINIMUM 45 DEGREES

  • BOOM EXTENDED 20,000LB @ MINIMUM 45 DEGREES

  • BOOM EXTENSION 120”

  • REACH PAST TAIL BOARD 130”

    WINCH SPECIFICATIONS

  • 2 WINCH 35,000LB TWO SPEED

  • AIR CABLE TENSIONER AND AIR FREE SPOOL

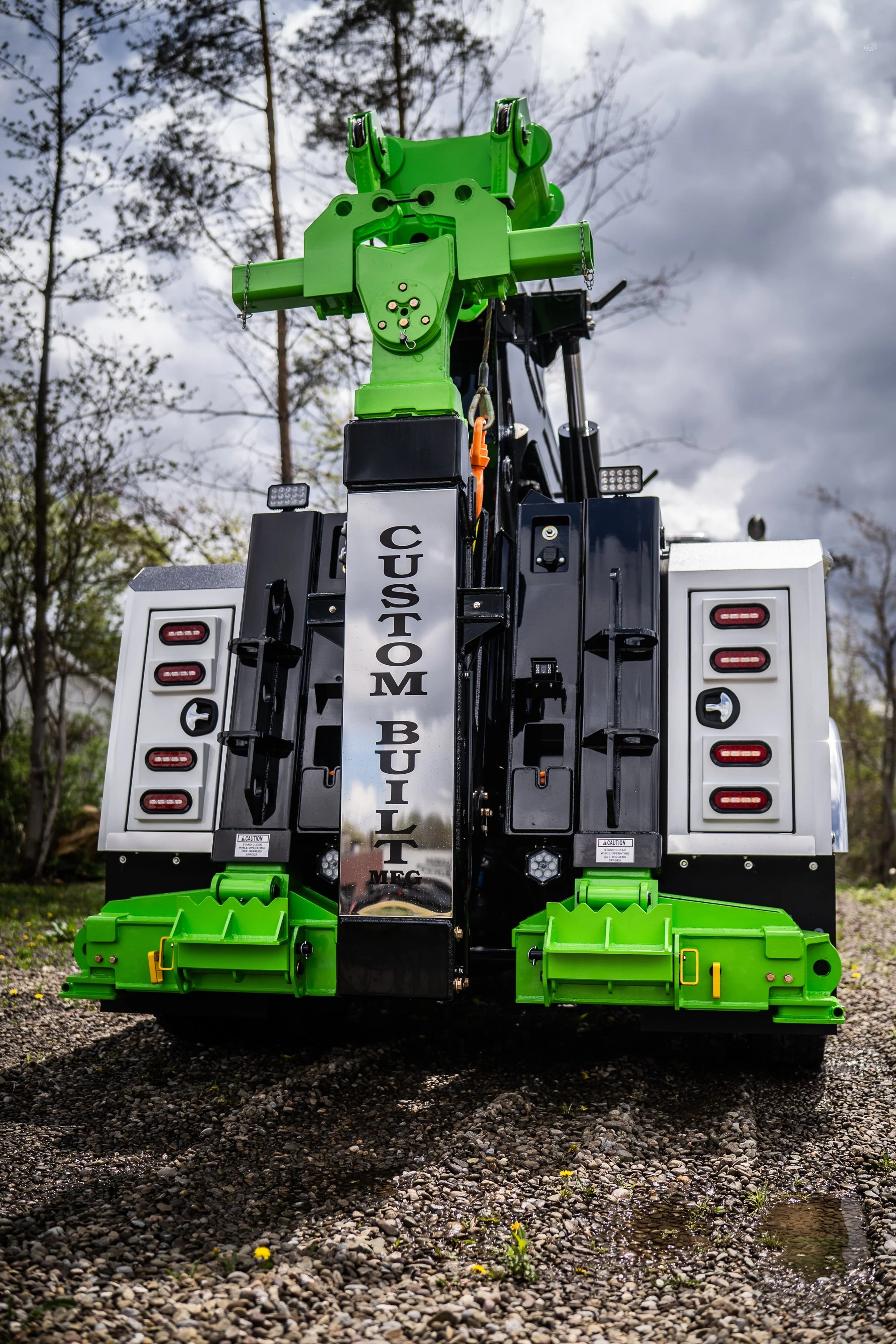

    underlift

  • UNDERLIFT FULLY RETRACTED 70” 35,000LB RATING

  • UNDERLIFT FULLY EXTENDED 135” 14,000LB RATING

  • TOW CAPACITY 80,000LBS

  • CENTER OF REAR AXLE TO TAIL OF FRAME 30”

    CHASIS RECOMMENDATIONS

  • MINIMUM FRONT AXLE GAWR 13,200LB

  • MINIMUM REAR AXLE GAWR 40,000LB

  • MINIMUM RBM EACH FRAME RAIL 2,250,000
