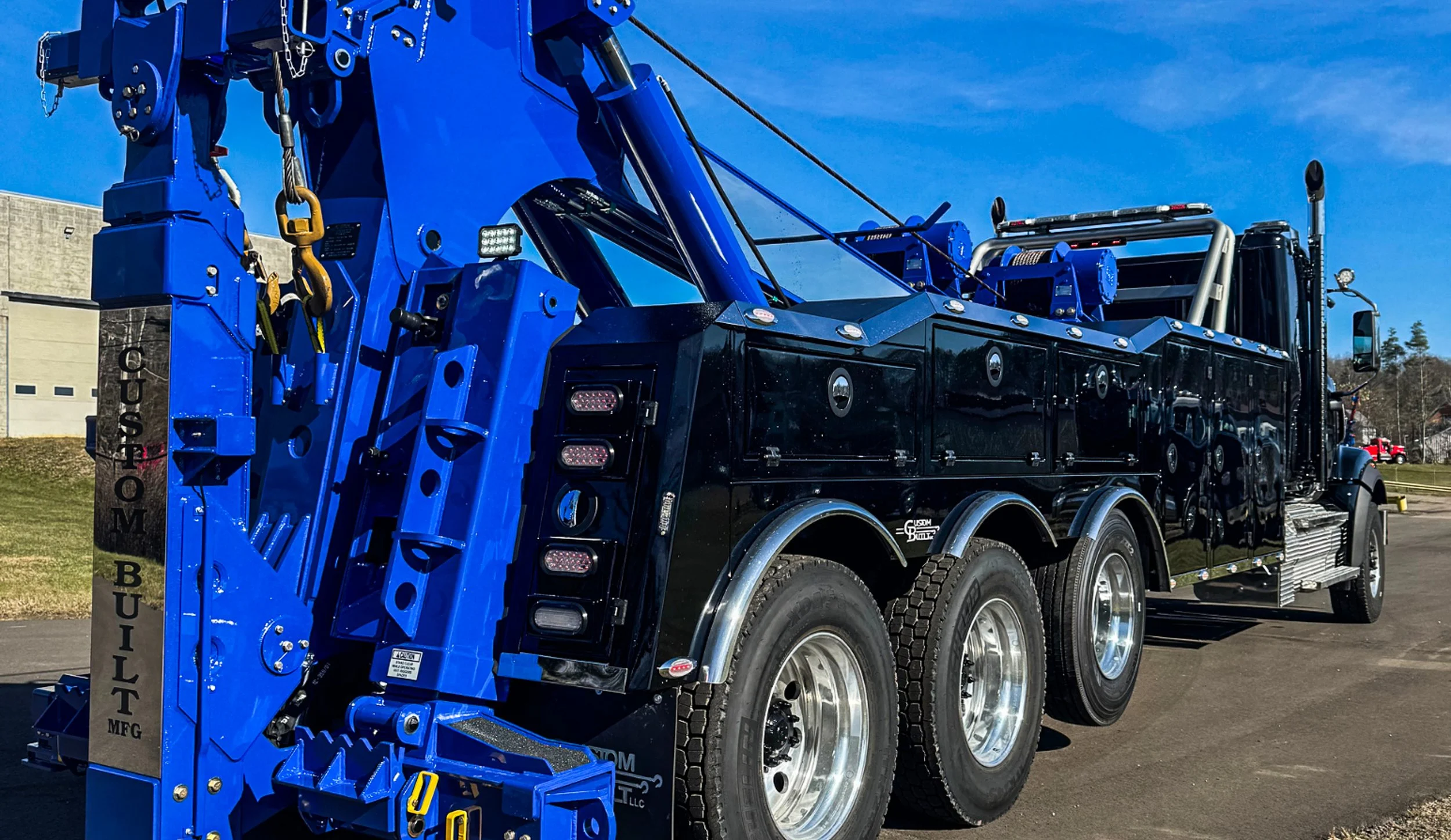

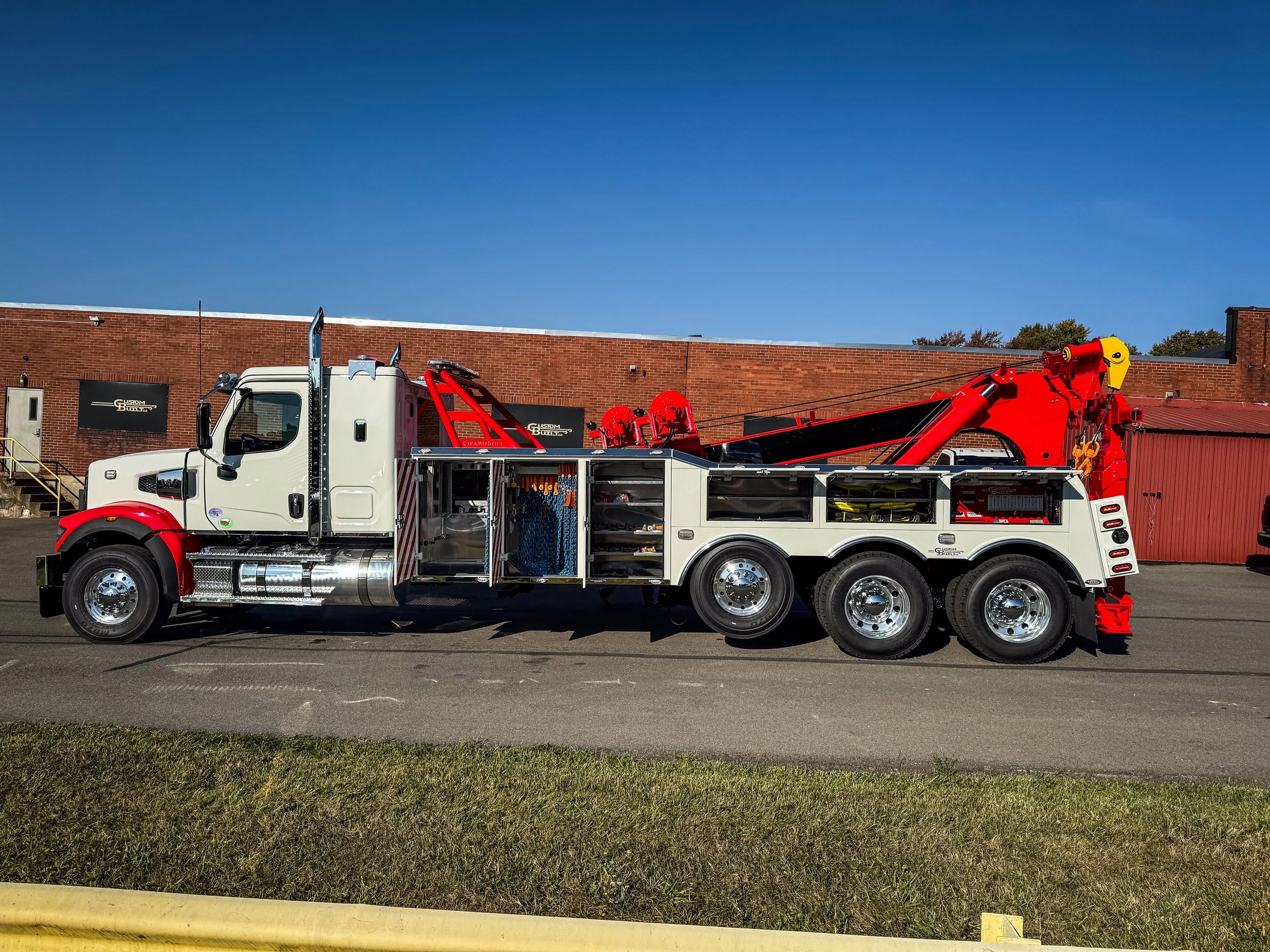

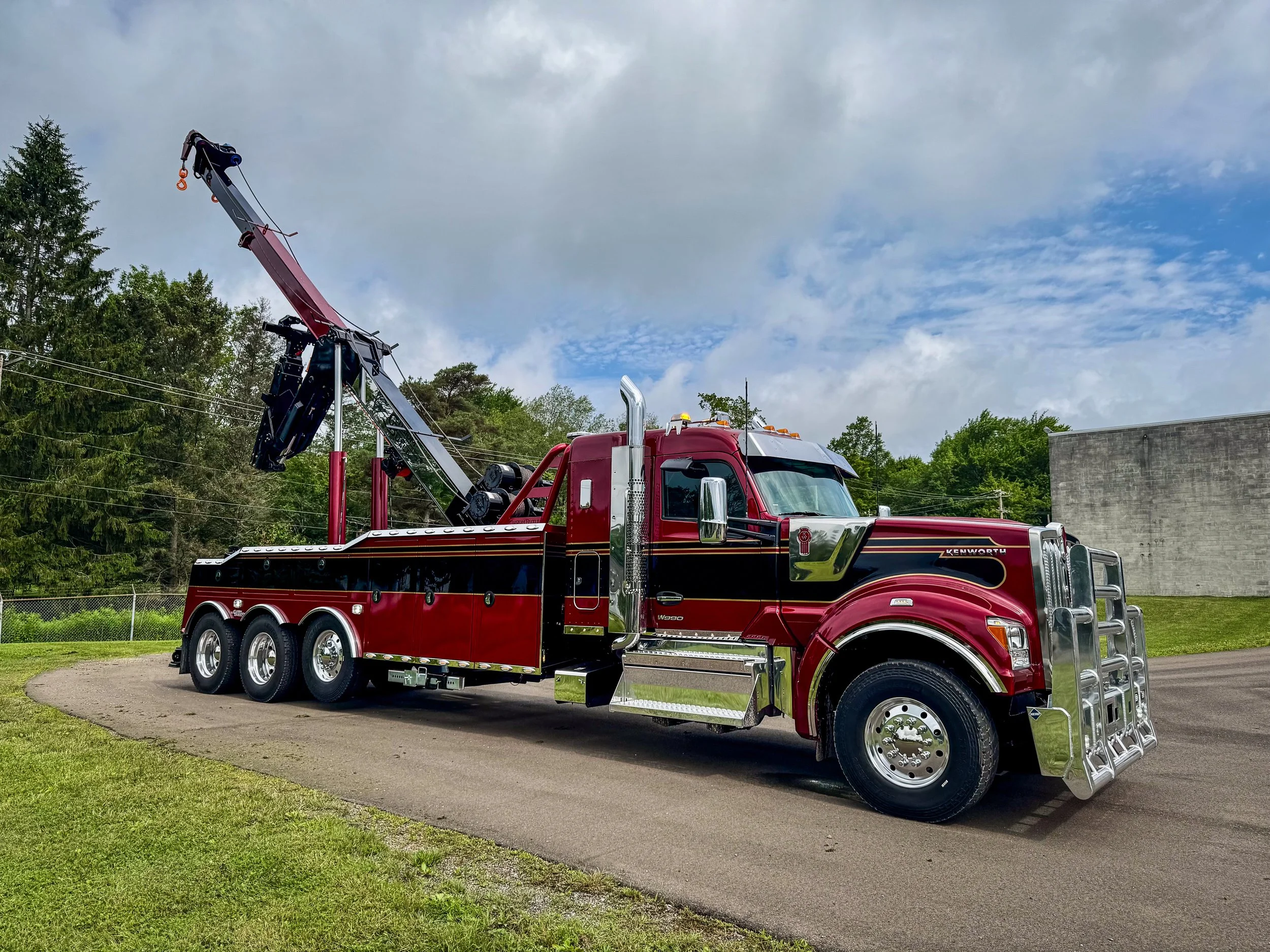

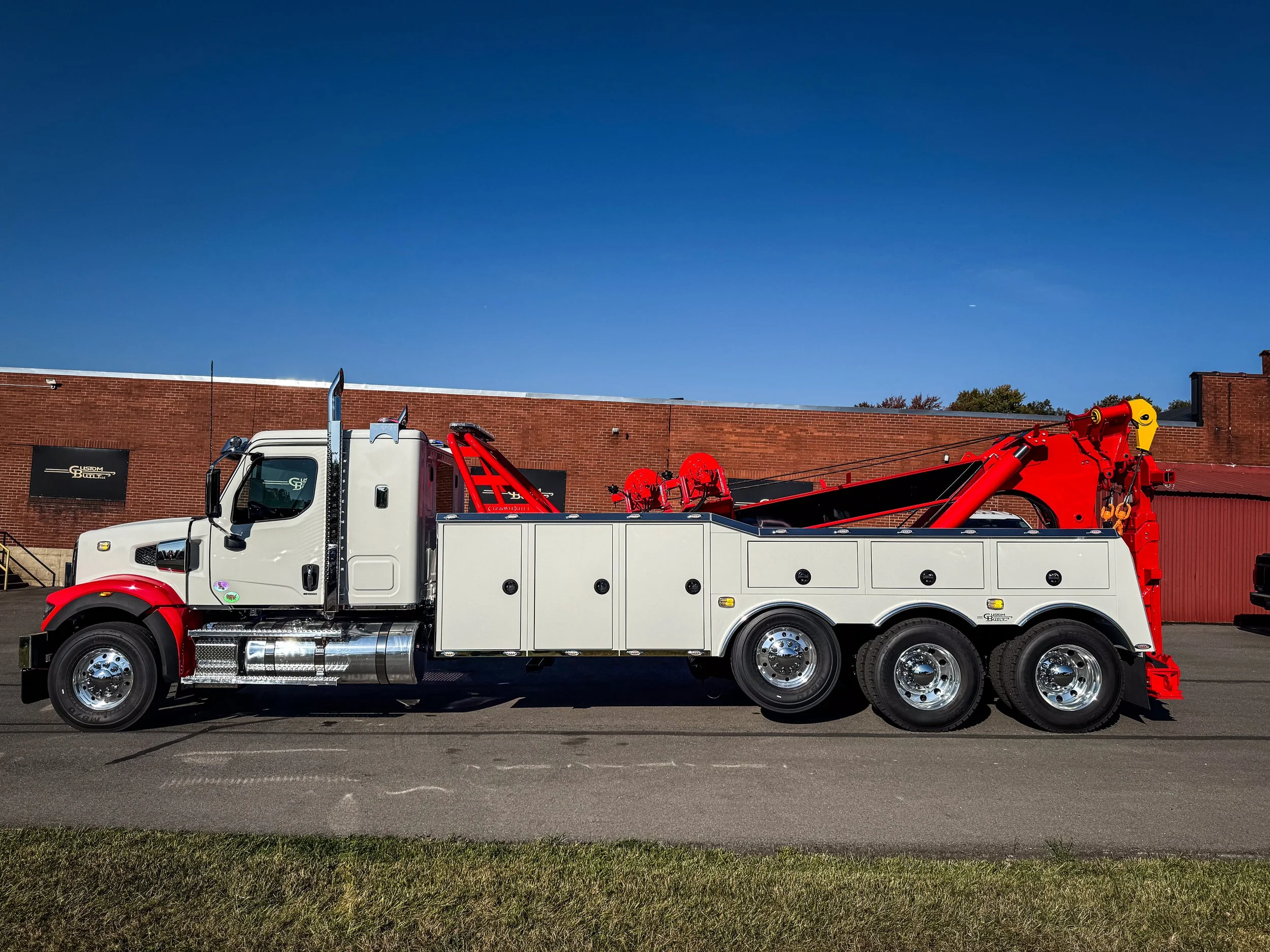

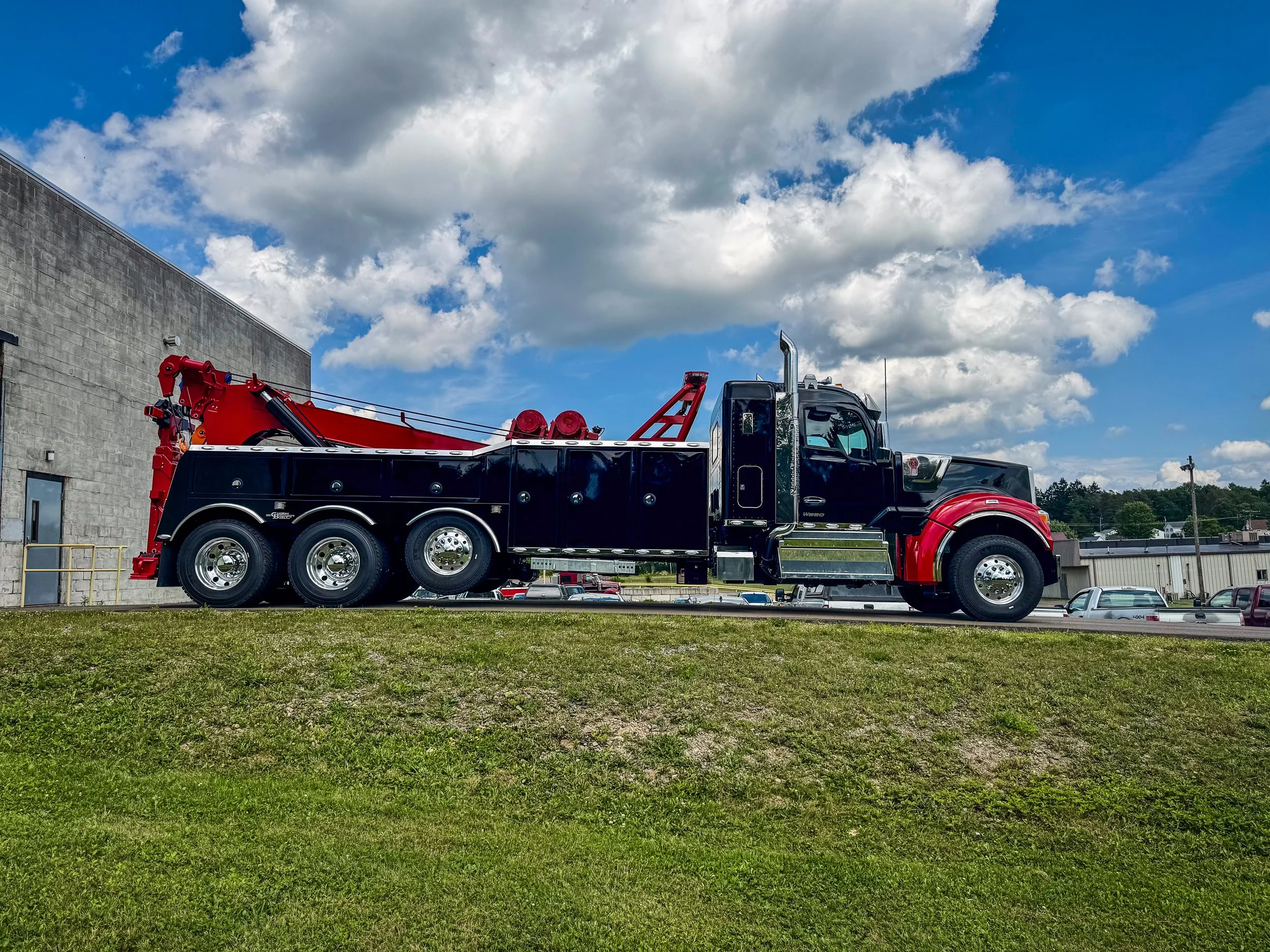

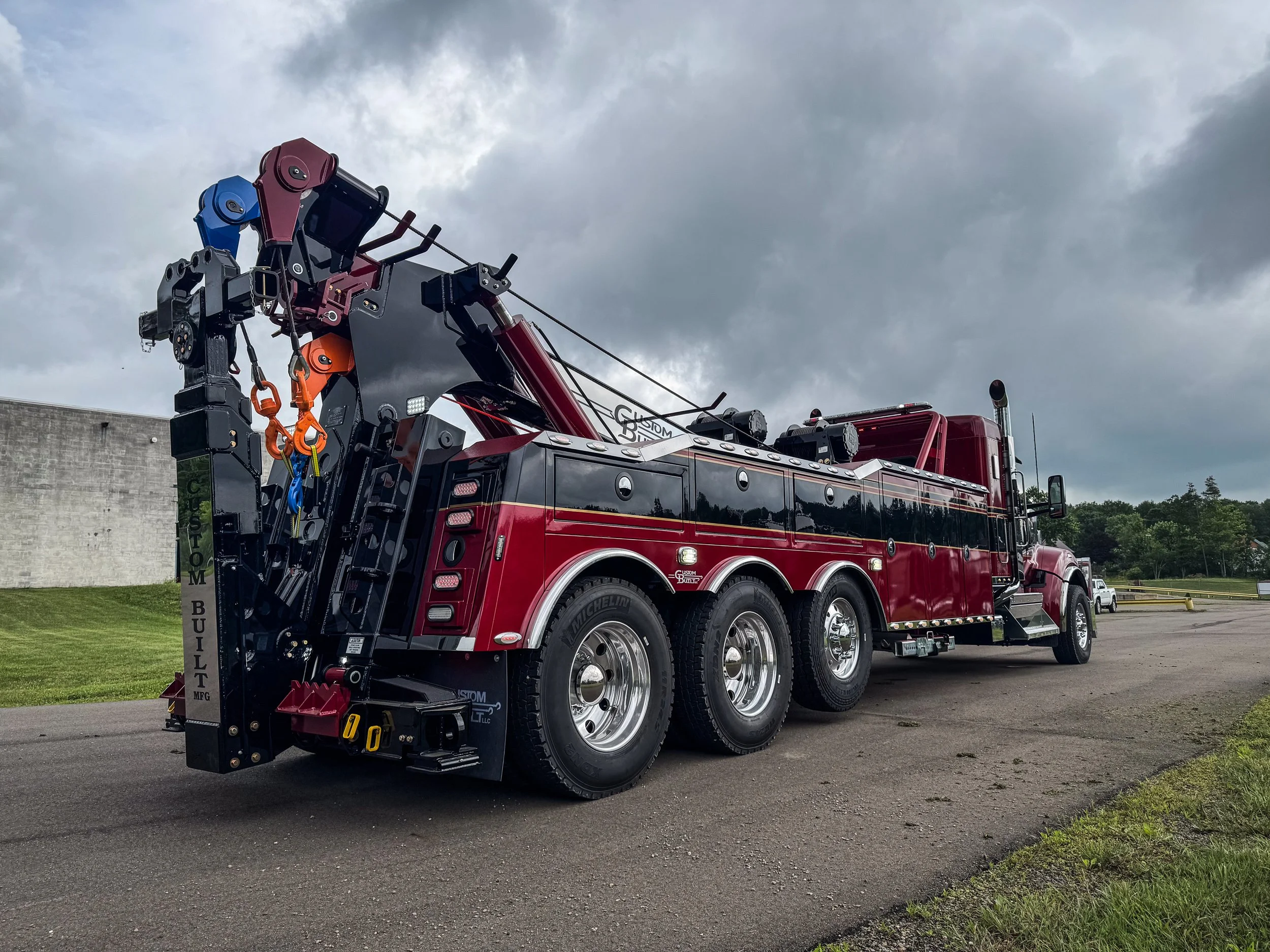

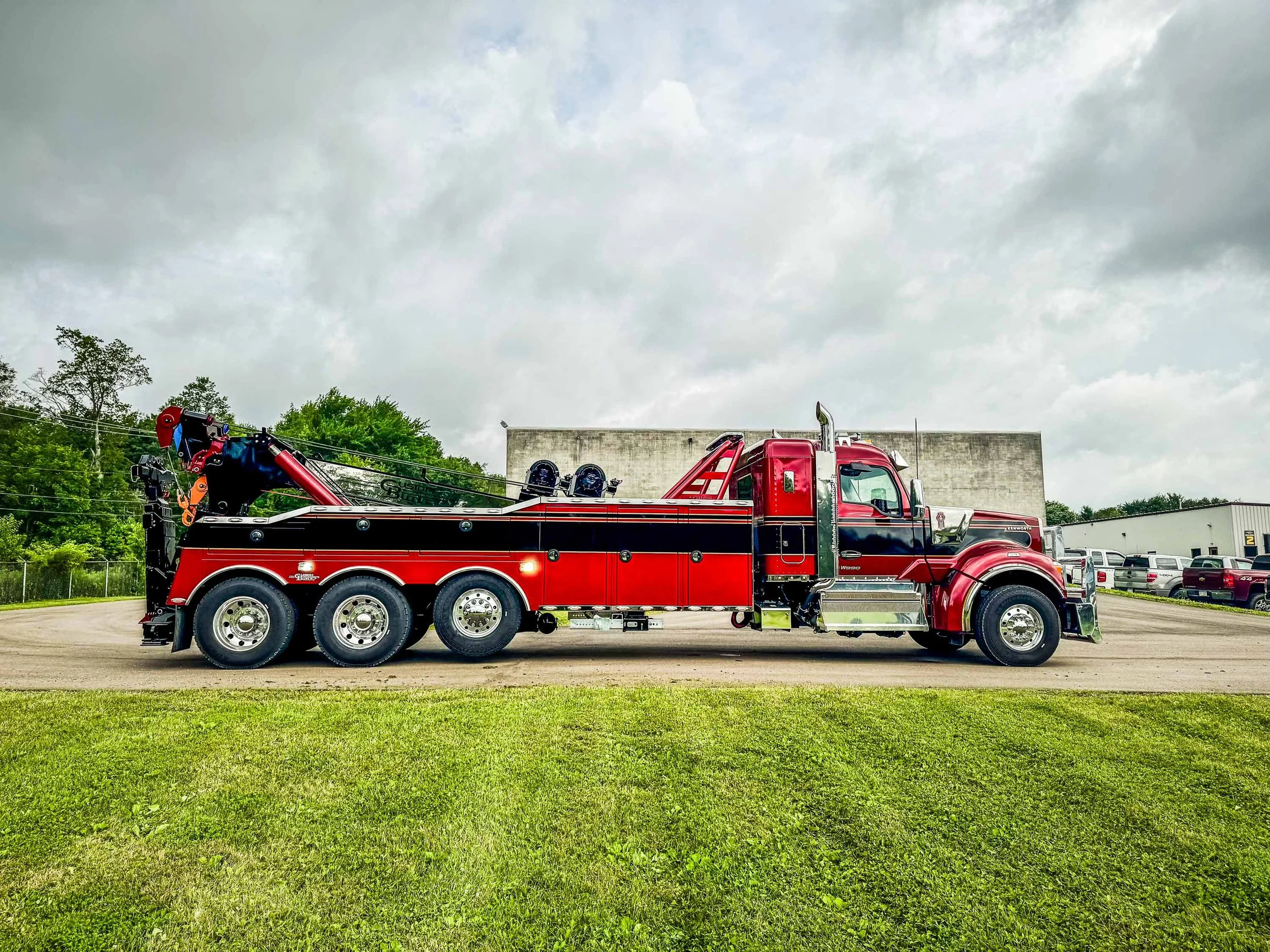

CB 50

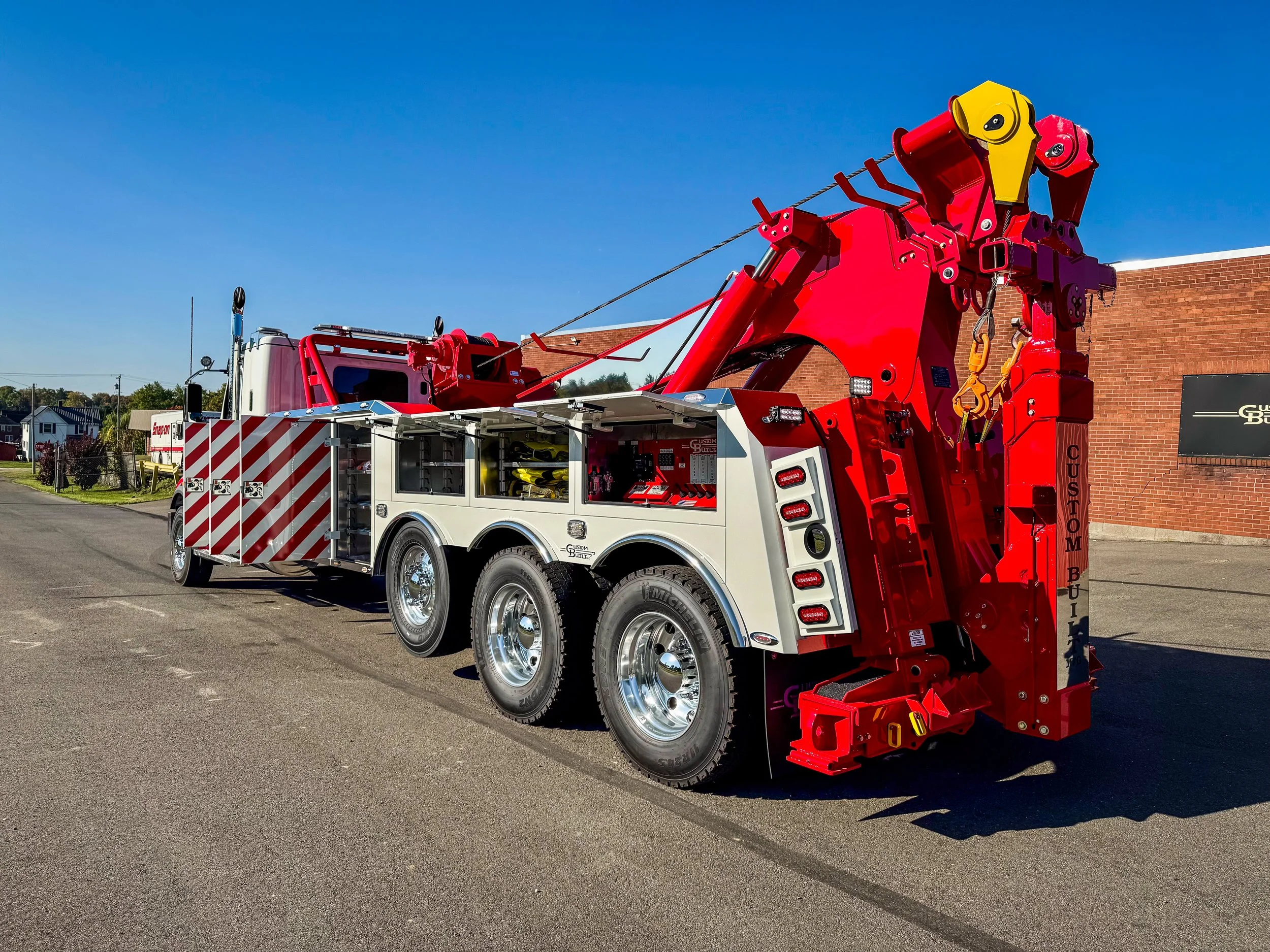

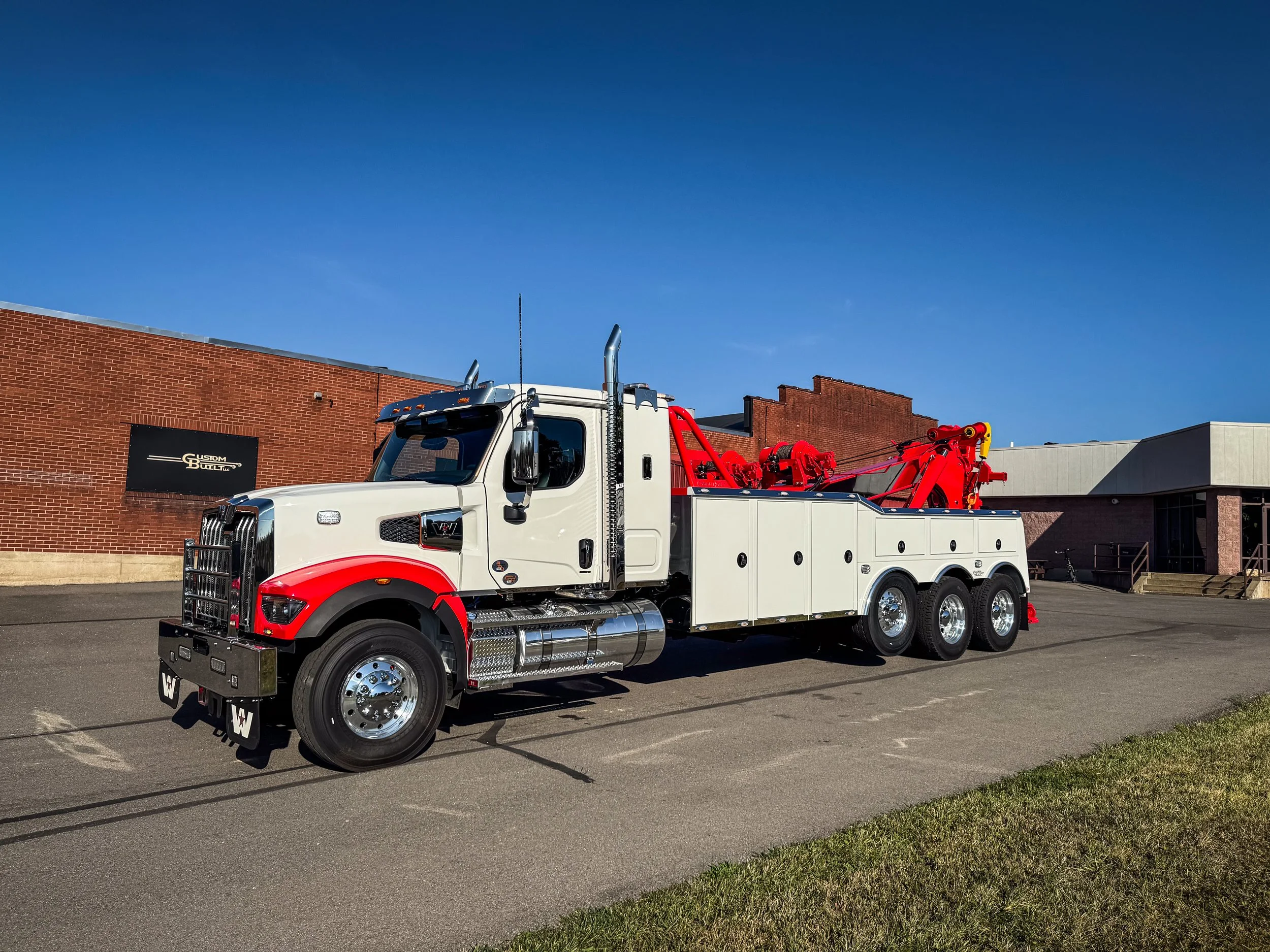

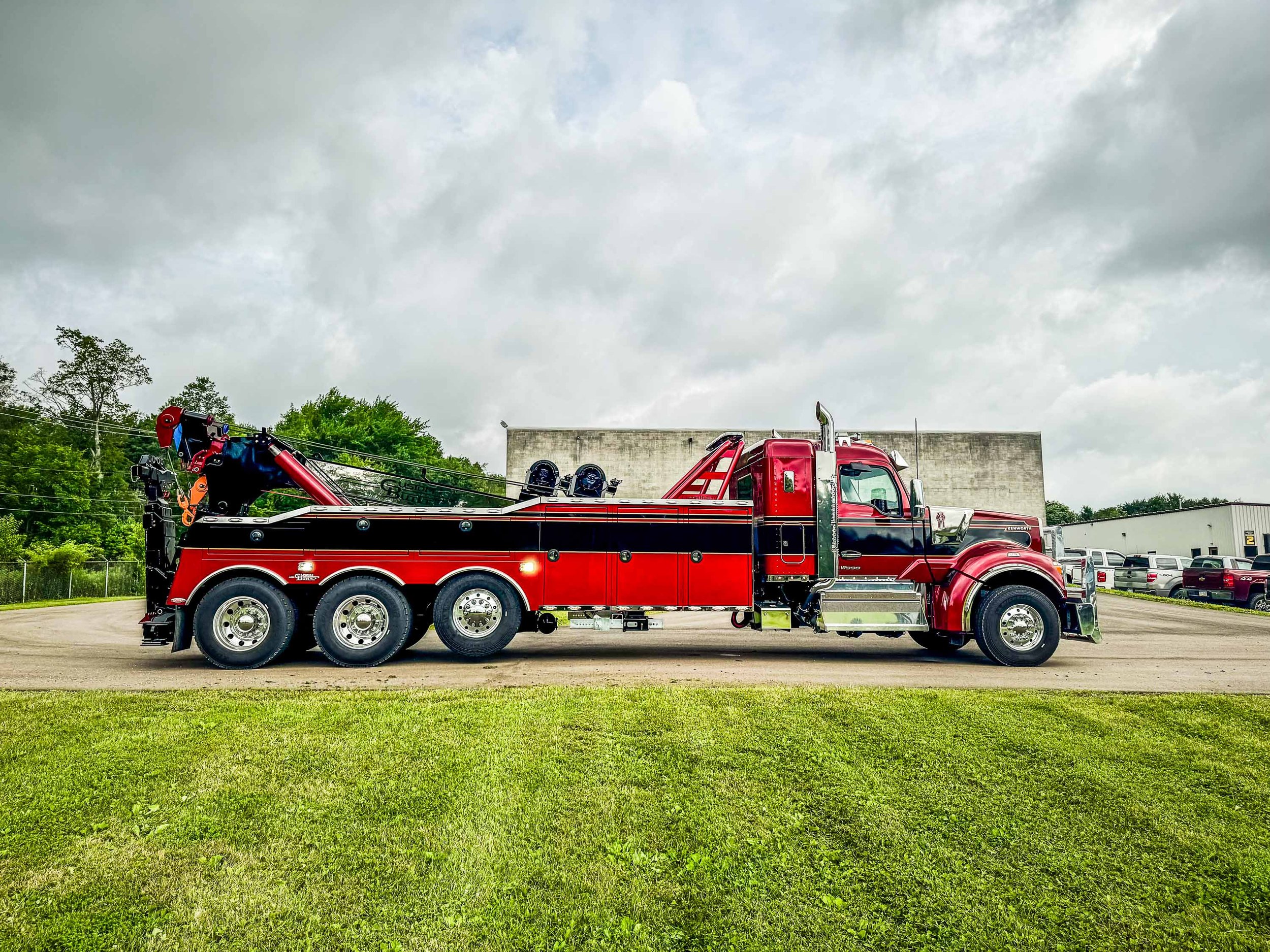

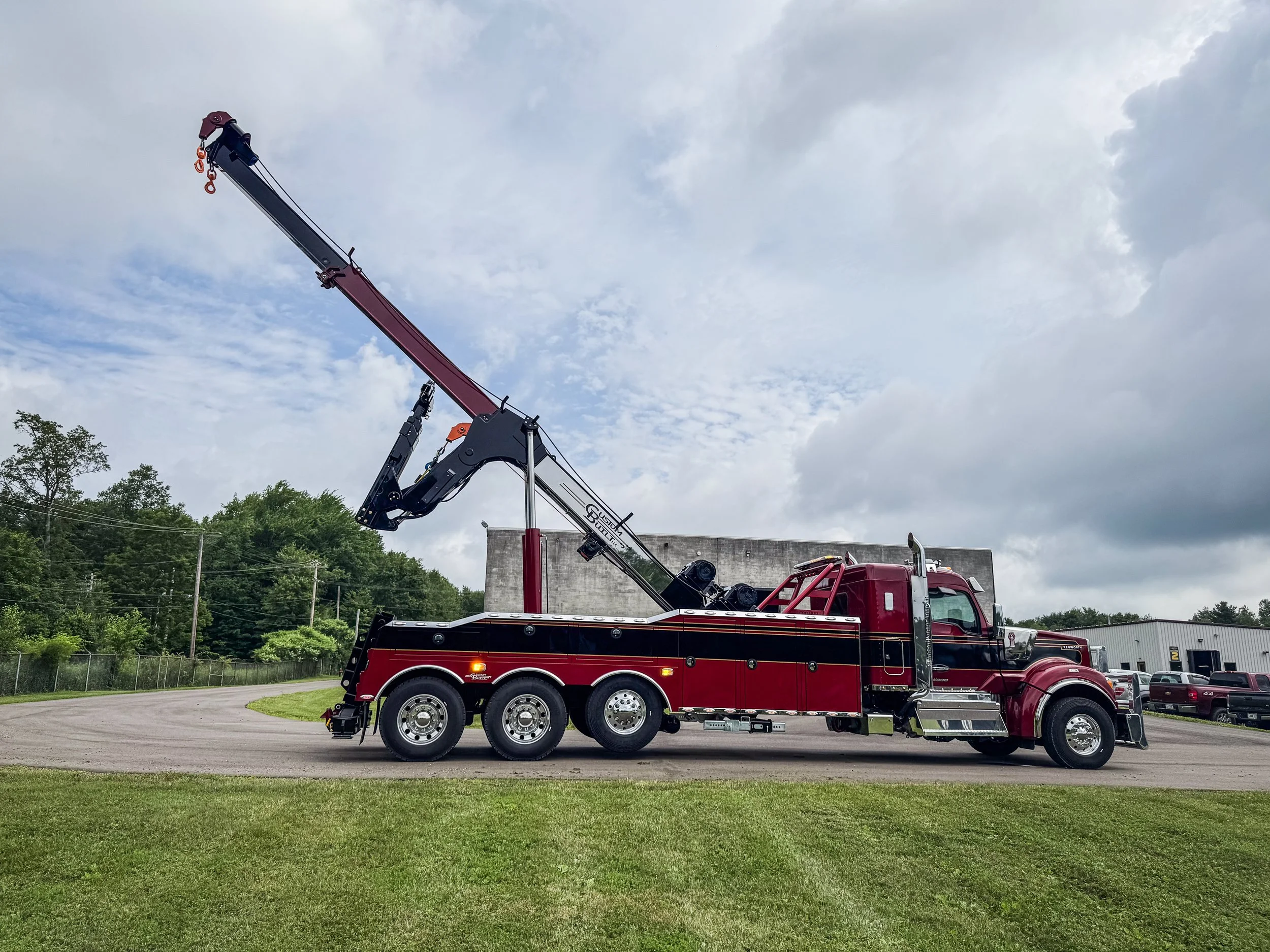

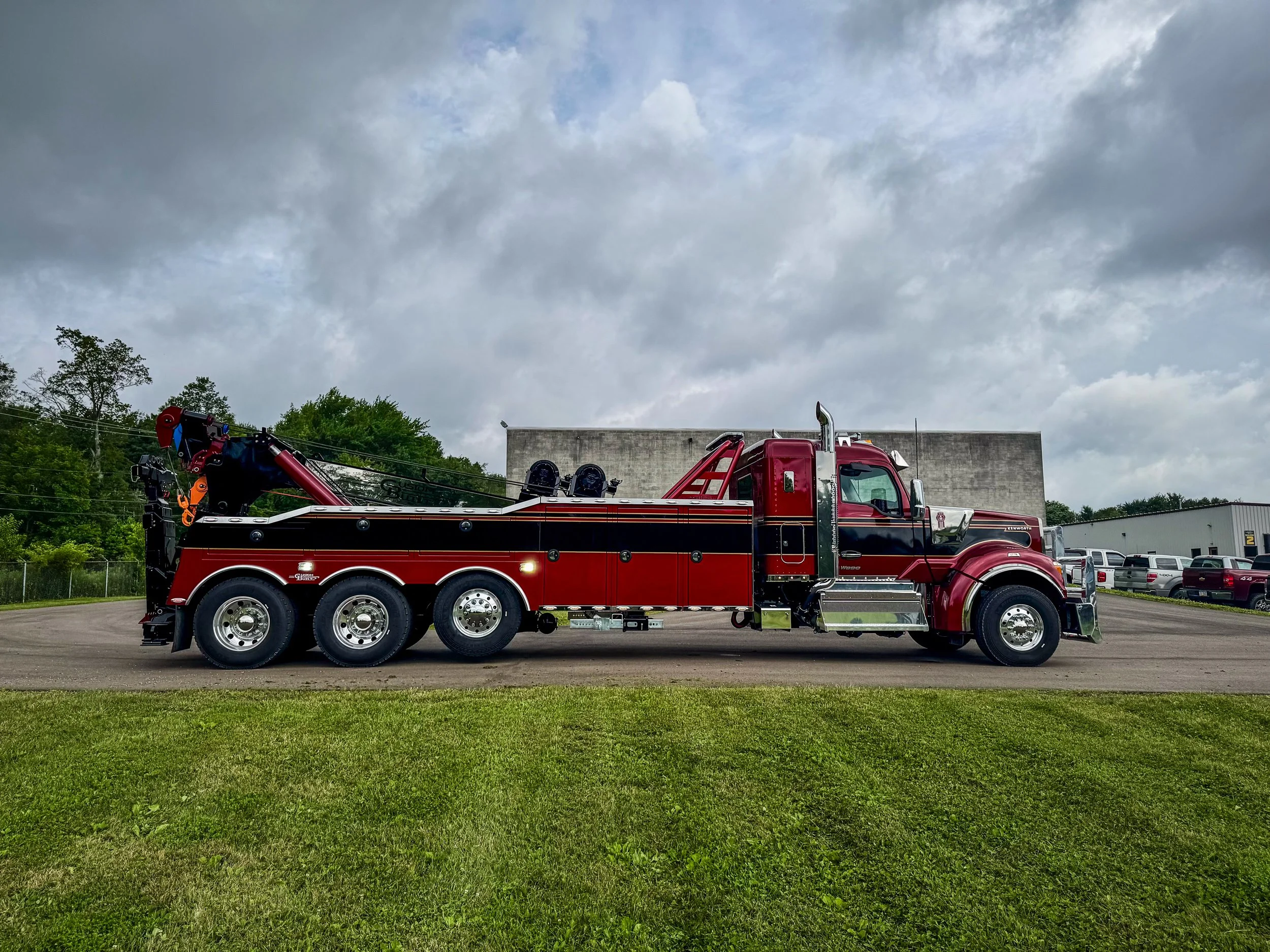

The CB 50 is Custom Built’s largest capacity integrated towing and recovery unit. With a 50-ton, 3 stage recovery boom, and dual 50,000lb winches. The CB 50 is ideal for heavy recovery work along with the ability to tow a wide variety of vehicles from mixers to packers and buses with its 130” of reach. The CB 50 recovery boom has a maximum length of 216” and an impressive 348” hook height. All while enabling an impressive 18,000 lb. boom rating when fully extended and at a 45-degree boom angle.
SPECIFICATIONS CB 50
RECOVERY BOOM
RETRACTABLE BOOM LIFT CYLINDERS 8” BORE BOOM
RETRACTED 100,000LB @ MINIMUM 40 DEGREES
BOOM EXTENDED 18,000LB @ MINIMUM 40 DEGREES
BOOM EXTENSION 216”
REACH PAST TAIL BOARD 228”
WINCH SPECIFICATIONS
2 WINCH 50,000LB TWO SPEED
AIR CABLE TENSIONER AND AIR FREE SPOOL
underlift
UNDERLIFT FULLY RETRACTED 70” 50,000LB RATING
UNDERLIFT FULLY EXTENDED 135” 14,000LB RATING
TOW CAPACITY 80,000LBS
CENTER OF REAR AXLE TO TAIL OF FRAME 30”
CHASIS RECOMMENDATIONS
MINIMUM FRONT AXLE GAWR 18,000LB
MINIMUM REAR AXLE GAWR 44,000LB
MINIMUM RBM EACH FRAME RAIL 2,800,000
-
![]()
